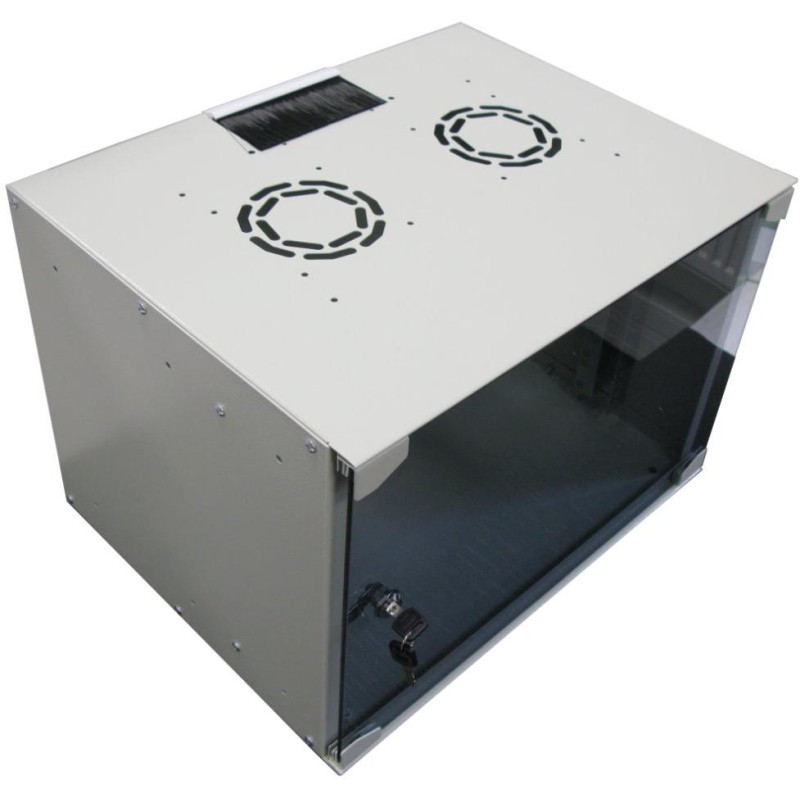

XtendLan 7U/520x400, wall-mounted, one-piece, unfolded, glass door, gray

XtendLan WE-7U-54-GRAY

19" rack , one-piece wall-mounted, height 7U, width 520 mm , depth 400 mm, height 360 mm, gray color RAL7035.

Glass door, load capacity 35 kg, disassembled - intended for assembly.

Distribution cabinets for installing data and telecommunications equipment

Universal one-piece distribution board designed for wall mounting (easy attachment - with dowels).

It is made of rolled steel, the supporting parts are made of 1.5 mm thick steel (the rest are made of 1.2 mm steel sheet). The structure allows a static load of 35 kg.

The front door is glass and lockable. The side panels are not removable.

Comes with a mounting kit.

Features:

•

• Wall-mounted 19" rack, one-piece

• IP20 protection

• Safety glass door, reversible door opening direction

• Perforated top cover with dual fan slots

• The cabinet includes two sliding vertical rails with perforations for attaching installed devices.

• Fasteners (cage nuts, washers, screws) - included with the cabinet

• There is a grounding point for connecting the grounding wire at the bottom of the switchboard.

• There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.

• Powder coating, grey, RAL7035

• Meets international standard IEC 60297-2


BASIC SPECIFICATIONS

Rack format: 19"

Capacity: 7U

Degree of protection: IP20

Dimensions: 520 x 400 x 360 mm (width x depth x height)

Design:

door - safety glass, reversible opening direction

back cover - full

side cover - full

top cover - perforated, with positions for two fans

Color: gray
