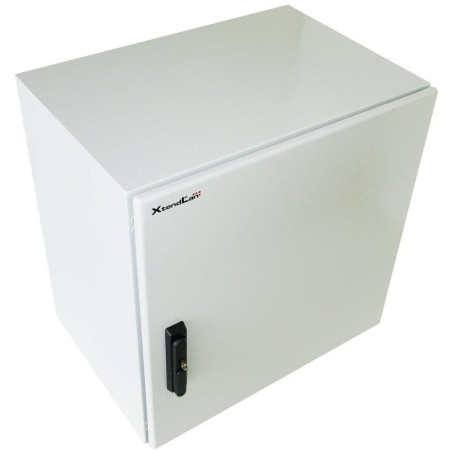

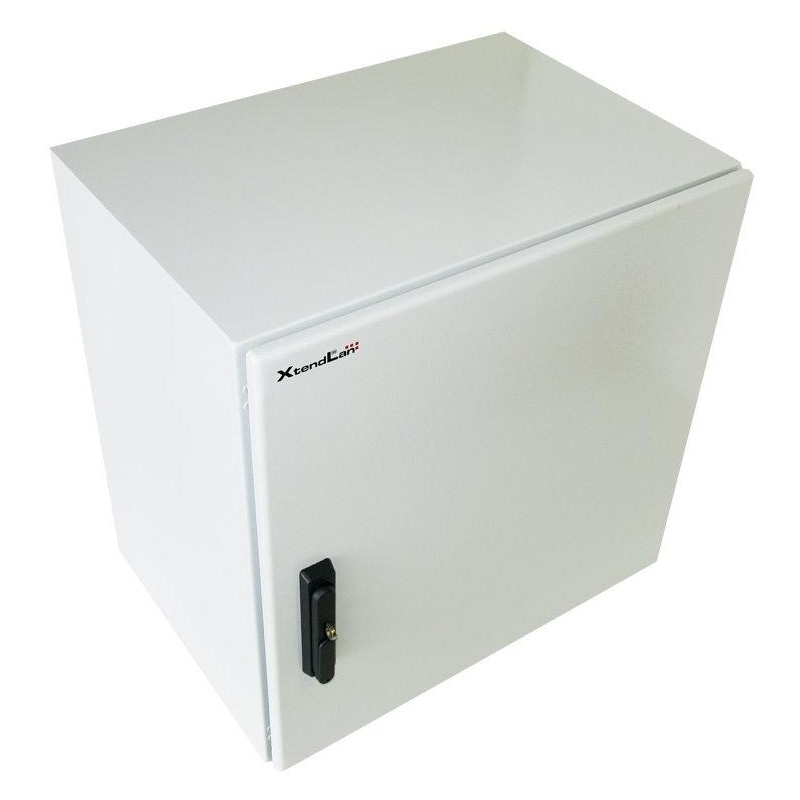

XtendLan WEH-12U-420-3L
The distribution cabinet is suitable for installing data and telecommunications equipment.
Outdoor wall-mounted switchboard made of 1.5 mm thick rolled steel. Three-layer surface treatment.
BASIC SPECIFICATIONS
Rack format: 19"
Capacity: 12U
Protection level: IP55 - waterproof
Dimensions: 600 x 420 x 600 mm (width x depth x height)
Design:
door - solid, opening 110°, 3-point lock, reversible opening direction, polyurethane foam seal
back cover - full
side cover - full
top cover - full
Color: gray, RAL7035BW
Other features
- Mounting holes for wall mounting always 20 mm from the outer edges
- vertical mounting rails for 19" devices - left and right
- Fasteners are included with the switchboard.
- In the lower part of the cabinet there is a 303 x 113 mm cable passage with a removable cover
- meets IEC60529, EN60529/10.91 and GB4208-93 standards
Accessories:
ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
mounting screws
master key
Open switchboard:
Fixed hinges and door grounding:
Lock detail:
Accessories:
