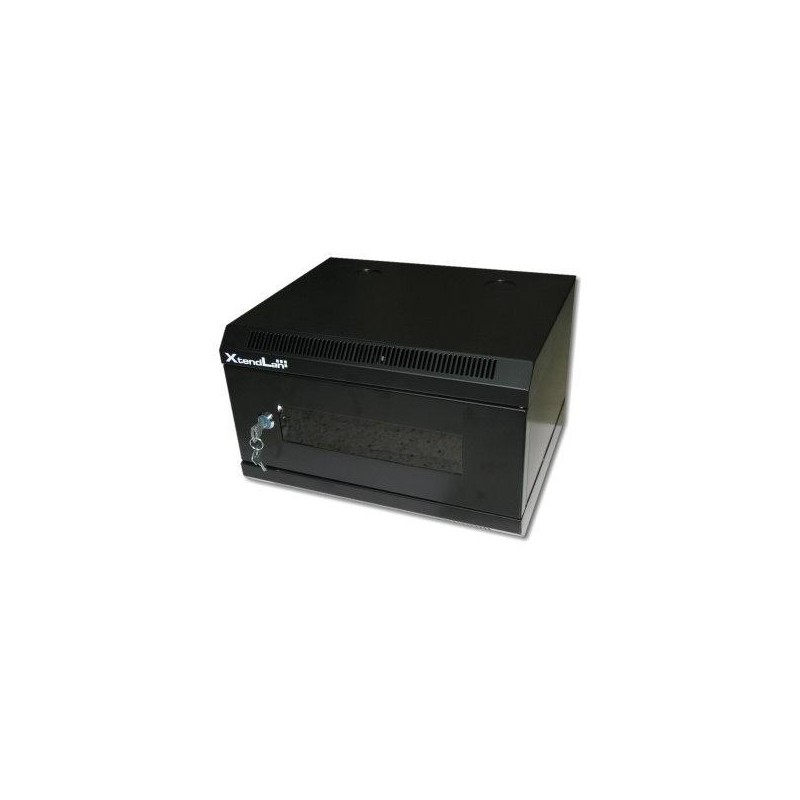

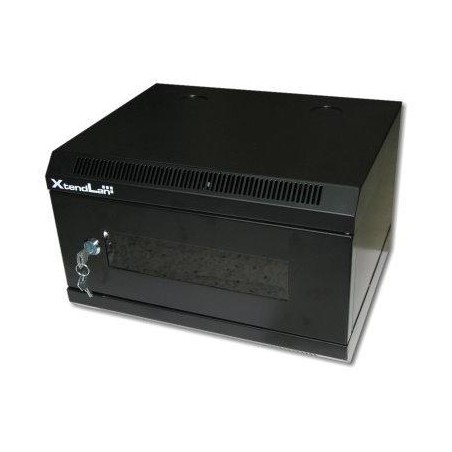

XtendLan Cabinet 10", 4U, 280x350, black, glass

XtendLan WT-4U-2835-BLACK

The distribution cabinet is suitable for installing data and telecommunications equipment.

Universal one-piece 10" pitch wall-mount distribution boxes. The distribution boxes are excellently crafted and have an elegant appearance.

They are made of rolled steel, the supporting parts are made of 1.5 mm thick steel, the rest of them are made of 1.2 mm steel sheet . The construction allows a static load of 50 kg .

BASIC SPECIFICATIONS

Cabinet format: 10"

Capacity: 4U

Protection class: IP30

Dimensions: 350 x 280 x 200 mm (width x depth x height)

Design:

door - plexiglass, lockable

back cover - full

side cover - full, non-removable

top cover - perforated

Color: black, RAL9004

Other features

•

• The distribution cabinet includes two fixed vertical rails with perforations for attaching installed devices.

• There are cable penetrations in the upper and lower parts of the cabinet and they are covered with blanking plugs.

• Four penetrations in total, two upper and two lower, break-out metal plug, penetration diameter 40 mm.

• Max. depth of installed device 215 mm.


View with the door open:
