Triton 19" single-piece rack 4U/400mm, disassembled DeltaX sheet metal door, black

Triton RXA 19"

19" detachable wall-mounted distribution cabinet with IP 30 protection, delivered disassembled.

The switchboard is hung directly on the wall.

The switchboard includes two adjustable vertical rails.

Switchboard design:

Distribution board made of parts connected by plastic plug-in pins

All-metal doors.

The maximum permissible load for each door is 10 kg.

The minimum thickness of the surface treatment is 65 µm.

Distribution cabinets are designed for the installation of data and telecommunications equipment and its distribution systems.

All parts are connected using grounding cables, which must be properly attached and inserted into the connectors throughout the entire period of use of the switchboard.

An M8 screw is located on the bottom of the cabinet as the main grounding point.

Cable entries covered by knock-out blanks are located in the upper and lower parts of the rear wall of the cabinet, others are on the upper and lower walls of the cabinet.

BASIC SPECIFICATIONS

Height: 4U (230mm)

Depth: 400mm

Width: 550 mm

Maximum recommended load: 25 kg

Weight: 11 kg

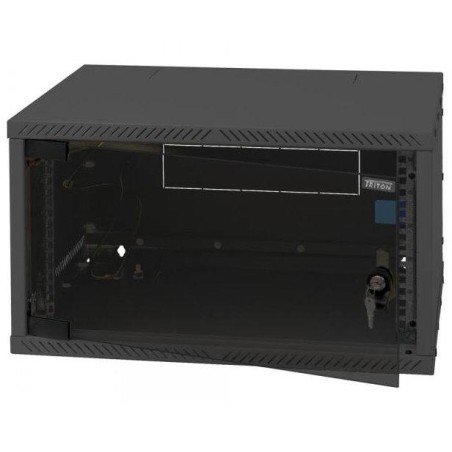

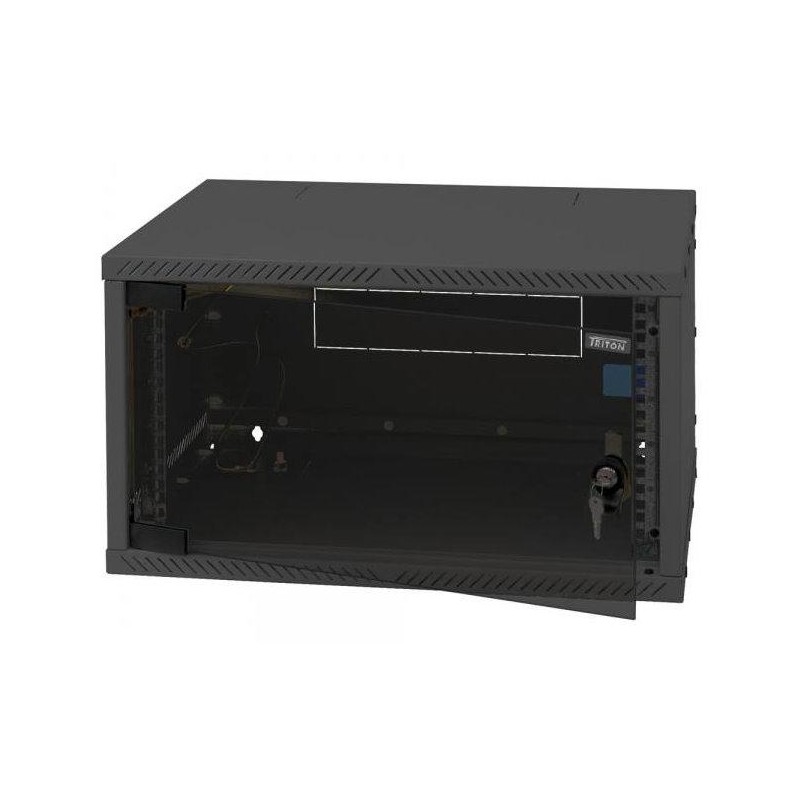

The image is for illustrative purposes only. This model is equipped with a metal door!
