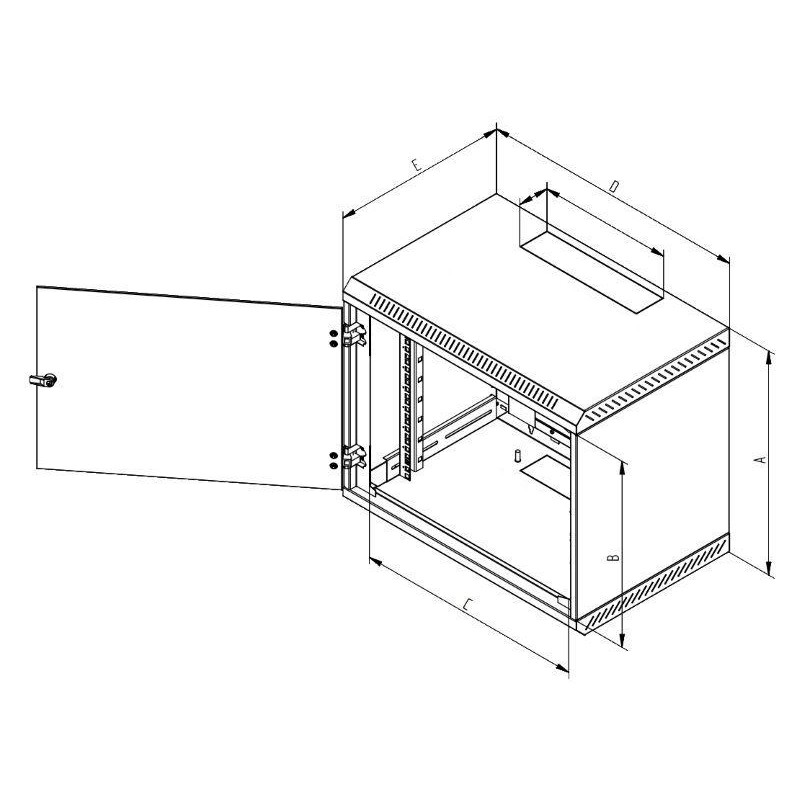

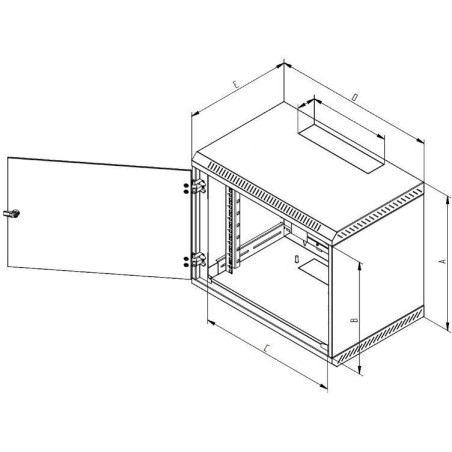

Triton 19" single-piece rack 18U/500mm sheet metal door

Triton RBA 19" 18U

One-piece wall-mounted distribution board with IP20 protection, load capacity when properly hung 100 kg . All-metal door, robust welded construction. The distribution board includes two sliding vertical rails.

•

• High structural strength - The cabinet has a robust welded construction. High quality workmanship and the latest technology ensure a great appearance of the cabinet.

• Doors - The cabinet doors are made of all-metal.

• Flexible door opening - The proprietary hinge system allows the door to open at an angle of 165°. The door can be easily removed. By turning the entire cabinet, you can get the door to open on the opposite side.

• Door lock - Allows easy and quick access to the switchboard.

• Adjustable vertical rails - 19" vertical rails can be continuously adjusted to any depth of the rack. This makes it easier to mount equipment and organize connecting cables. The rack package includes one pair of vertical rails. There is a perforation in the back of the frame that replaces the second pair of vertical rails. Another option is to purchase vertical rails as an optional accessory.

• Knock-out blanking plugs - Cable entries are provided in the top, bottom and rear of the cabinet, covered with knock-out blanking plugs. To prevent dust from entering, the cables in the opening can be sealed with a brush (included in the cabinet package).


Features

•

• 19" one-piece wall-mounted distribution cabinet with IP20 protection.

• The switchboard is hung directly on the wall.

• The switchboard includes two sliding vertical rails.

• Cabinet construction - compact welded cabinet / all-metal door

• The maximum permissible load for each door is 10 kg.

• The minimum thickness of the surface treatment is 65 µm.

• Distribution cabinets are designed for the installation of data and telecommunications equipment and its distribution systems.

• All detachable parts of the cabinet are connected using connecting cables, which must be firmly attached and inserted into the connectors throughout the entire period of use of the cabinet.

• The main M8 grounding screw is located at the bottom of the switchboard.

• Cable entries covered by knock-out blanks are located in the upper and lower parts of the rear wall of the cabinet, others are on the upper and lower walls of the cabinet.


BASIC SPECIFICATIONS

Height: 18U (900mm)

Depth: 500mm

Width: 600 mm

Max. recommended load: 100 kg

Weight: 27.7 kg

Accessories:

2× key - front door

4× screw 6×50

4× washer 6.6

4× dowel 10

8× M6 floating nuts

1× dust plug
