XtendLan Outdoor rack for 19", 4U, depth 360mm, IP55, gray

XtendLan WEH-4U-603630

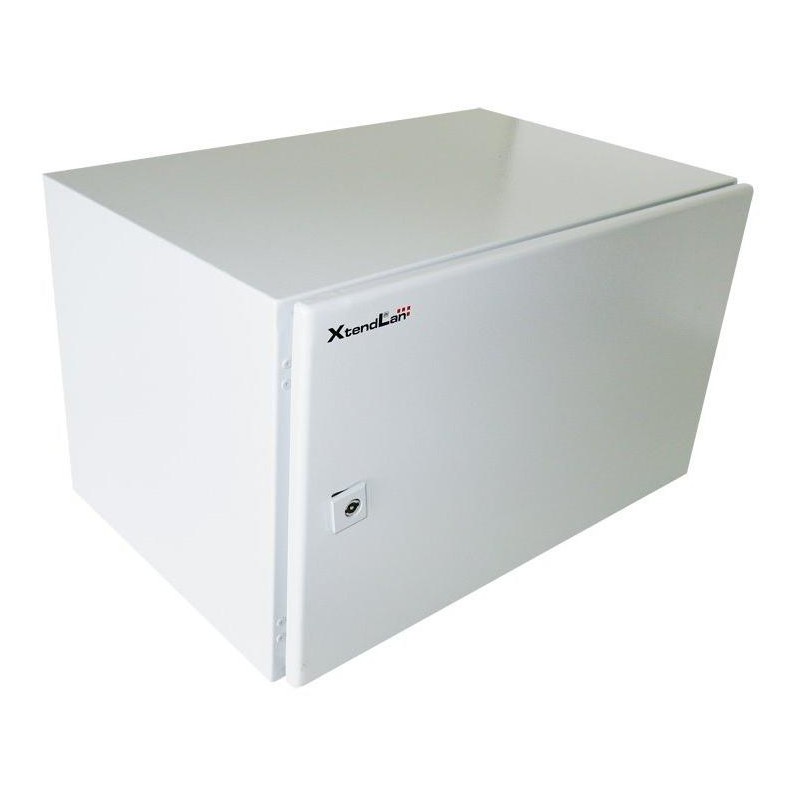

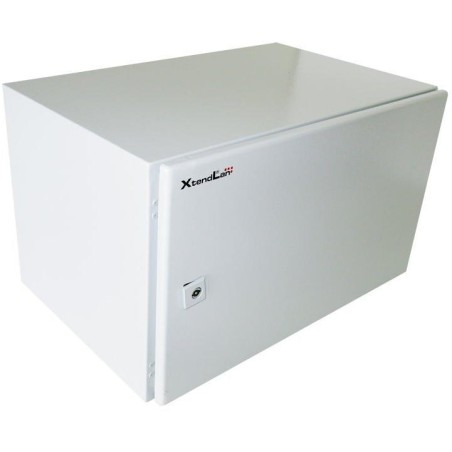

Illustrative photo

The distribution cabinet is suitable for installing data and telecommunications equipment.

Outdoor wall-mounted switchboard made of 1.5 mm thick rolled steel. Three-layer surface treatment.

BASIC SPECIFICATIONS

Rack format: 19"

Capacity: 4U

Protection level: IP55 - waterproof

Dimensions: 600 × 360 × 300 mm (width × depth × height)

Design:

door - solid, opening 110°, reversible opening direction, polyurethane foam seal

back cover - full

side cover - full

top cover - full

Color: gray, RAL7032

Other features

•

• Mounting holes for wall mounting always 20 mm from the outer edges.

• Vertical mounting rails for 19" devices (left and right).

• The connecting material is included with the switchboard.

• There is a wiring passage with a removable cover in the lower part of the cabinet.

• It meets IEC60529, EN60529/10.91 and GB4208-93 standards.


Accessories:

- ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)

- mounting screws

- universal key

Dimensional diagram:

Dimensional diagram - detail (for version WEH-9U-604540):

Open switchboard:

Fixed hinges and door grounding:

Lock detail:

Accessories:

Please note: When receiving your shipment, it is necessary to check it for damage or incompleteness. Follow the instructions for receiving the package , which will ensure proper and timely resolution of any damage to the shipment.
