Solarix LC-18 LITE rack with 3U and 4U rails, 540x540x180mm, gray RAL7035

Solarix SOHO LC-18 distribution box

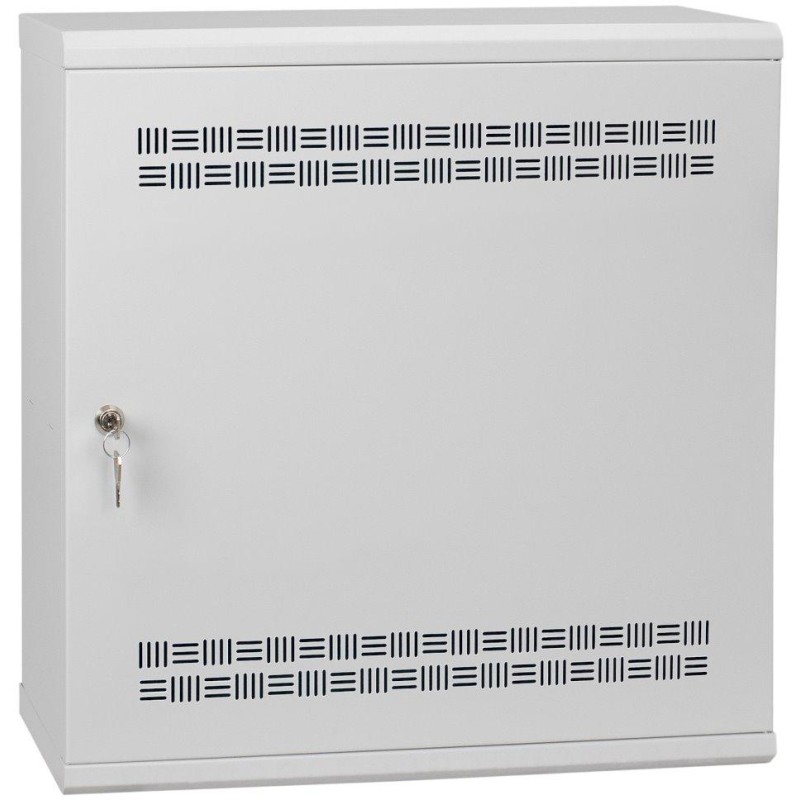

The modern wall-mounted data distribution cabinet Solarix LC-18 LITE is designed for the installation of smaller-scale network cabling elements or for the installation of telecommunications distribution elements.

The Solarix LC-18 LITE cabinet is made of a skeleton that is characterized by great strength and rigidity. The front of the cabinet is equipped with a sheet metal door and a metal lock with a patent key.

19" fixed rails have dimensions of 3U and 4U.

The sheet metal doors are equipped with perforations for passive ventilation of the equipment located in the cabinet.

Cable entry is enabled by pre-prepared holes on the top and bottom walls of the cabinet and in its back.

The rear wall of the cabinet contains prepared break-out loops for tying off cable reserves.

The rear wall contains holes for mounting the switchboard on the wall.

•

• 2 pairs of vertical 19" rails, 3U and 4U included


• door can be opened at an angle of 180°, option of right or left closing


• perforated front door with 1-point patent key lock


• cable entries in the bottom, top and rear


• 4 holes with a diameter of 6.5 mm in the back for wall mounting


• protection level: IP20



BASIC SPECIFICATIONS

Rack format: 19"

Degree of protection: IP20

Dimensions: 540 × 540 × 180 mm

Color: gray (RAL 7035)
