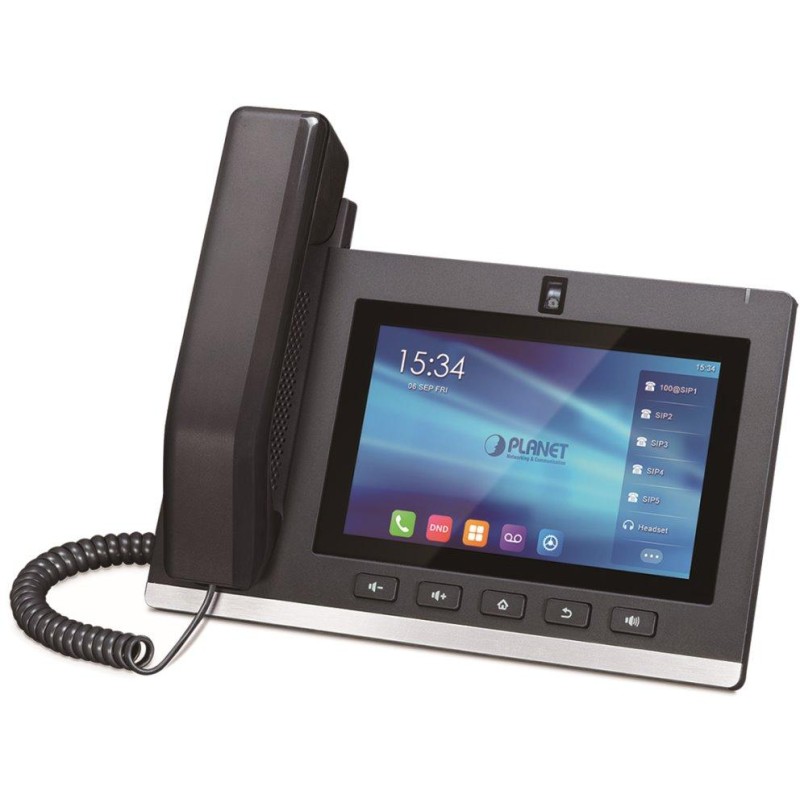

PLANET ICF-2000
Videophone and VoIP phone in one with the ability to conduct video conferences, SIP standard, direct connection or connection to SIP servers, calls to other videophones or VoIP devices and gateways, HD sound quality .
7" touch screen , 1024 × 600 resolution, 5Mpx camera, BLF support, Android 9.0 OS, possible installation of additional applications, Wi-Fi (2.4 GHz/ 5 GHz), PoE power supply (802.3af/at) .
Device features:
- 7" color touch screen with Android 9.0 operating system
- 5MP camera for video calls in 1080p resolution at 30 fps (H.264)
- full duplex voice transmission (AEC)
- 3-way conference
- up to 20 SIP lines with 112 one-touch DSS buttons
- option: In-band, out-of-band DTMF Relay (RFC 2833), SIP INFO
- white/black list support
- hold/mute/forward/call waiting
- VLAN, LLDP, CDP, QoS, DHCP, VPN, SNTP support
- noise reduction (NR) and packet loss masking (PLC)
- local phone book (2000 entries), remote phone book (XML/LDAP, 2000 entries)
- integrated web server for web-based management and configuration
- table or wall mounting
The phone is compatible with the SIP 2.0 protocol, which guarantees reliable connections with other devices and VoIP gateways or devices. The device is generally compatible with the SIP standard with support for SIP proxy servers. The bandwidth requirement for a video call for an Internet connection is approximately 64–4096 kb/s, depending on the video quality and fps set.
BASIC SPECIFICATIONS:
Physical properties
Interface: Wi-Fi (2.4 GHz, 5 GHz), 2× RJ-9 (headset, handset), 1× RJ-45 (network + PoE), 1× RJ-45 (PC port)
Display: 7" LCD, touch, color, 1024 × 600 px, 4-point multitouch
Control buttons: 1× HOME button, 1× back button, 2× volume buttons, 1× hands-free button
Power supply: DC 12 V (max. 8.6 W; adapter not included) or PoE (IEEE 802.3af/at, DC 48-54 V; max. 10.76 W)
Mounting: on a table, on a wall
Operating temperature: 0 to 45 °C
Dimensions: 265 × 172.1 × 145.2 mm
Weight: 760g
Management: Web, Telnet, Auto Provisioning support FTP, TFTP, HTTP/HTTPS, DHCP OPT66, SIP PNP, TR-069
Protocols: SIP2.0 over UDP/TCP/TLS, DNS A/SRV/NAPTR, RTP/RTCP/SRTP, STUN, DHCP, CDP, LLDP, 802.1x, OpenVPN (requires third-party application support), SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
IP configuration: static, DHCP
EMC/EMI compliance: CE, FCC, RoHS
Phonebook: up to 2000 entries, support for XML and LDAP lists on the server
Video codecs: H.264
Audio codecs: Opus, G.722, G.711a/u, G.729, G.729A, G.729B, G.729AB, iLBC
