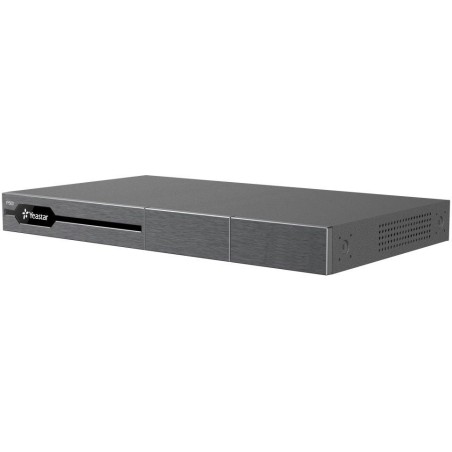

Yeastar P560
The Yeastar PBX P560 can serve up to 200 users - extensions . It is a modular PBX, so it is possible to expand the number of its ports by inserting additional modules. The PBX is made of solid metal and is suitable for use in a rack, where it occupies 1 position (1U) .
The PBX includes an annual EP license , which offers additional features such as: operator panel, advanced call center functions, Wallboard - online preview of call center status, detailed reporting of calls and call center operations, and Linkus Cloud Service. If you want to use the additional features after the first year, you can purchase another annual subscription to this license.
Supported modules are:
S2 (2x analog telephone), O2 (2x analog line), BRI (2x ISDN2), SO module (1x an. telephone, 1x an. line), 3G (1x GSM channel, SIM800 version module), LTE (1x 3G/4G channel)
The exchange can contain up to 4 module slots. The exchange can use both SIP/IAX trunks for connection to VoIP operators and individual SIP accounts usually used for connection of VoIP phones.
Yeastar P-Series control panels feature a new, very user-friendly web interface. Compared to the S-Series, the design has been redesigned and a number of new features have been added. These include, for example, the ability to assign detailed permissions to individual users, an event center, an interactive Dashboard, or plotting graphs showing the control panel load.
- Max. 200 users (extensions) and 60 simultaneous calls
- Possibility to expand with S2/O2/SO/BRI/GSM modules or expansion D30 module
- Automatic call recording included
- More powerful hardware
- New web interface design
- Services such as voice guidance (IVR), ring groups, queues, conferences, etc.
- Possibility of using an integrated call center solution, including detailed reports and an operator panel
BASIC SPECIFICATIONS
Interface: 1x expansion card slot, 1x SD slot, 1x USB, 2x RJ-45 (LAN/WAN), 1x console, 6x antenna connector, 1x SATA disk slot (max. 2 TB)
Protocols: SIP, SIPS, RTP, SRTP, IAX, UDP, TCP, TLS
Codecs: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4
Power supply: internal AC 100-240 V power supply
Dimensions: 440 x 252 x 44 mm
