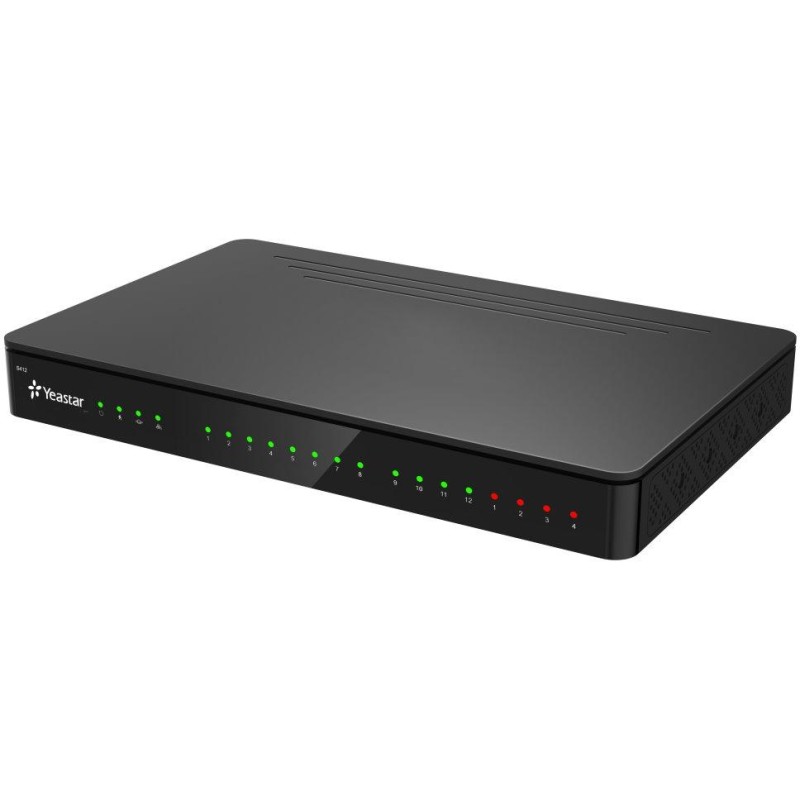

Yeastar S412
The ideal exchange for those who need to replace an old exchange , but still need to keep the internal analog telephones. This solution allows you to keep the incoming HTS or ISDN lines . The exchange is modular , you can configure it according to your needs.
In addition to the 8 pre-configured ports for analog phones, you can configure 4 ports for analog phones and 4 ports for analog or ISD2 lines or connection to mobile services using an LTE module, as needed. You can configure by inserting the correct module into the prepared ports in the PBX.
You can also use the exchange as a small VoIP exchange for 8 VoIP devices (IP phones or gateways).
The S412 PBX allows you to use up to 4 VoIP trunks. This PBX is therefore also suitable for those who want to switch to cheaper VoIP calls. You can of course combine both technologies in various ways to increase cost efficiency.
- Up to 20 internal extensions (8 integrated analog ports + expandable by 4 analog ports + 8 analog/IP phones via LAN)
- Up to 8 simultaneous calls
- Up to 4 external analog (HTS) lines or up to 4 ISDN2 lines (8 call channels) or GSM call via LTE module
- New and more powerful hardware
- New web interface design
- Voicemail including the option to send a message to e-mail
The control panel contains 4 module slots:
S2 (2x analog telephone), O2 (2x analog line), BRI (2x ISDN2), SO module (1x an. telephone, 1x an. line), GSM (1x GSM channel, SIM800 version module) and LTE (1x 3G/4G channel)
Note: The first and second slots only support the S2 module.
In addition to basic call functions (forwarding, switching, etc.), the switchboard also provides a number of advanced functions:
- 4 external SIP trunks (for possible connection to VoIP operators)
- Blacklist for incoming calls
- Automatic call recording without royalties
- Czech and Slovak sayings
- Detailed call list - CDR report
- Call center (call queues)
- Multi-level automated attendant (IVR)
- Conference including its management via the web
- Ring groups
- Voicemail including the option to send a message to e-mail
- LDAP server - global directory
- Event Centre - notification in case of selected event
- Firewall (including automatic IP address blocking)
- E-mail-to-Sms / Sms-to-E-mail (after inserting the GSM module)
- Fax-to-Email
- Bulk import/export of flaps from/to CSV file
It can also be expanded with the G.729 codec. The G.729A codec license is included in the S series PBXs (no need to purchase it separately).
You can also install the following applications for this control panel for free, which you can find in the web management in the App Center:
LDAP Server - Provides centralized phone book management, making phone book management easier. Once the LDAP server is running, you can search the LDAP directory and search for contacts on your IP phone.
Tenchkus - Linkus is a mobile client that connects your mobile phone to your corporate IP extension and allows you to connect with colleagues and customers, anywhere and anytime. Make and receive calls via the corporate telephone network to reduce call costs and increase efficiency.
Conference Panel - The Conference Panel is a visual control panel for your conference calls. You can invite people using the dial-out feature on the panel or you can use the phone. You can also save all the contact information of the participants in a "Contact Group" for reuse.
VPN Server - The VPN server application provides a way to securely connect a PBX to a remote network. Traffic between the PBX and the remote network is encrypted, which improves the security of the PBX.
BASIC SPECIFICATIONS
Interface: 4x module slots, 1x TF slot (microSD), 2x RJ-45 (LAN/WAN), 12x FXS (RJ-11), 4x analog. FXO/BRI port (RJ-11)
Protocols: SIP (RFC3261), IAX2, UDP, TCP, TLS, SRTP
Codecs: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4
Power supply: external power supply DC 12 V (3.33 A)
Dimensions: 290 x 180 x 33 mm
