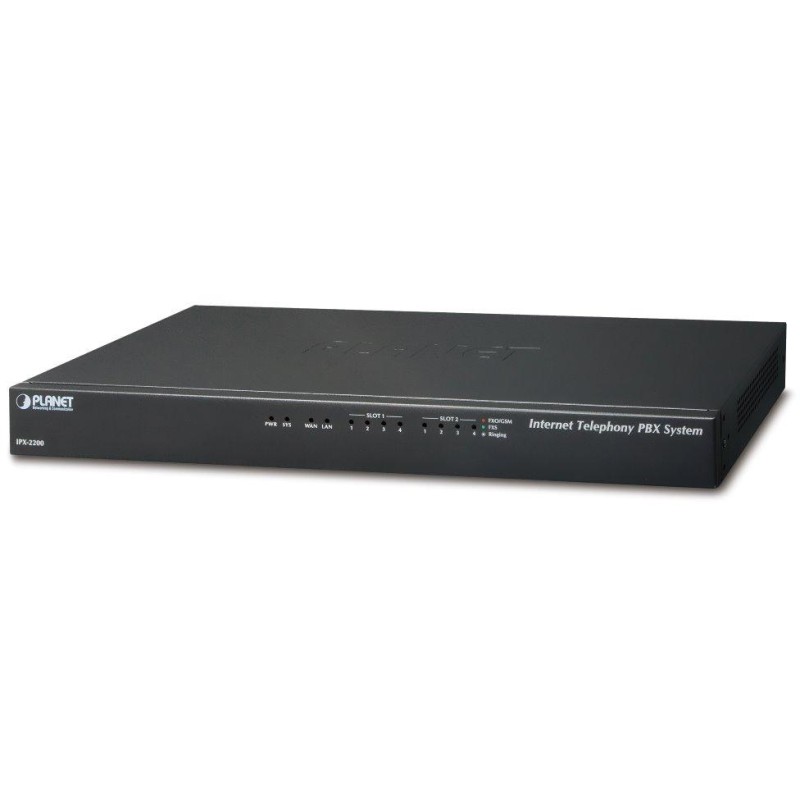

PLANET IPX-2200
Telephone exchange for VoIP , SIP Proxy for 200 lines and 60 simultaneous calls, 2x slots for installing FXS, FXO, GSM or ISDN modules .
Web/SNMP management, VPN server/client, TCP IPv4/IPv6 support, SIP2 and IAX2 standards, IVR voice gatekeeper, call routing, answering machine (up to 150 hours), voicemail (up to 150 hours), email notification, DID dialing, call recording, conference calls, video calls, BLF line status, FAX server, Skype for SIP function.
Planet IPX-2200 is a telephone system designed and optimized for use in small and medium-sized businesses . The device supports registration of up to 200 users/devices , is easy to install and manage. The system offers functions such as centralized call management, automatic attendant, voice conferencing, voice access to external PSTN, GSM or VoIP telephone networks, call recording or voice mail. It supports Internet telephone operators, allowing you to completely remove and replace the connection to classic telephone services.
The web interface for device management is also available in Czech.
This is a telephone exchange that, using additional modules, allows you to operate up to 8 external circuits to the PSTN or GSM telephone network. This makes it possible to fully integrate it into existing telephone systems. The exchange is suitable for smaller installations with support for all the functions we are used to in classic exchanges. It extends them with integration with email and management via a web browser. The BLF (Busy Lamp Field) function allows you to signal the status of lines on selected end devices.
The exchange is a VPN server or client for a more secure connection between subscribers, and integrates a FAX server for the possible reception and sending of messages exclusively electronically.
Standard SIP VoIP telephones from any manufacturer can be registered to the exchange. To expand the possibilities of integration into the analog telephone network, it can be supplemented with supported voice gateways.
Pay special attention to securing the IPX switchboard against access from the Internet. It is not even necessary and it is advisable not to expose it to a public IP address (preferably behind a firewall and NAT). Then, in the firewall, allow only traffic to the SIP registration server, and prohibit other traffic.
If you do not use international calls, have your VoIP provider disable outgoing calls or limit them to the maximum amount called per day (as protection against call misuse by an attacker).
BASIC SPECIFICATIONS
PBX functions:
- Group call routing
- Possibility to put a call on hold during a call and pick it up and continue from any other device (Call parking)
- IVR, automatic voice doorman, interactive voice menu, controlled according to set working hours
- Conference, possibility of calling a telephone conference, system of inviting participants by voice recording
- Call recorder, duration depending on quality: PCM up to 50 hours, GSM up to 350 hours
- Voicemail, sending recordings to users by email, saving recordings to disk, the user can listen to the answering machine via the telephone line if they know the password; duration depending on quality: PCM up to 150 hours, GSM up to 1500 hours
- Playing any inserted recording while waiting (e.g. music, commercials etc.)
- Detailed records of calls made, CDR export
- Controlling the control panel settings from the device
- User control of line settings (forwarding, blocking, alarm, etc.)
- DID (Direct Inward Dialing Number) with possible pre-dialing when calling internal numbers
- List of prohibited numbers (black list)
- BLF (busy line field) signaling for operator sets
- Virtual FAX server for receiving and sending faxes, function of sending received FAXes to email (FAX to email)
- Asterisk compatible IP PBX
Functions for IP connections (VoIP)
- Standards: SIP 2.0 (RFC3261), IAX2
- SIP codecs: G.722 (HD)/ G.711-Ulaw/ G.711-Alaw/ G.726/ G.729/ GSM/ SPEEX
- Implementation of video call connections using codecs: H.261, H.263, H.263+, H.264
- Support for fax transmission using T.38 codec
- SIP Proxy, NAT support, connection to other SIP proxies (trunk), MD5 authorization
- Auto Provision: possibility of automatic configuration of connected VoIP devices
- Call routing based on prefixes and wildcards, blocked and allowed prefixes
- Grouping users into logical groups defining the routing of their calls
IP functions:
- Device management: WEB or SNMP v2
- Protection against DoS attacks
- VPN server/client with protocol support: N2N, L2TP, PPTP, OpenVPN
- IPv4 and IPv6 protocol support
- Integration in a VLAN network according to IEEE 802.1Q
- DDNS client (Planet, Easy DDNS)
Hardware:
- 60 simultaneous VoIP calls, 200 registered devices
- 2x slots for installing ISDN, FXS, FXO, GSM 4-port modules
- 2x Ethernet (LAN + WAN) 10/100 Mbps, 10/100 Base-TX, switch, Auto MDI/MDI-X, RJ-45 connector
- Dimensions: 343 x 154 x 35 mm
- Power supply: internal AC 100-240 V power supply
- Operating temperature: -10 to +45 °C
- EMC/EMI: CE, FCC Class B, RoHS
