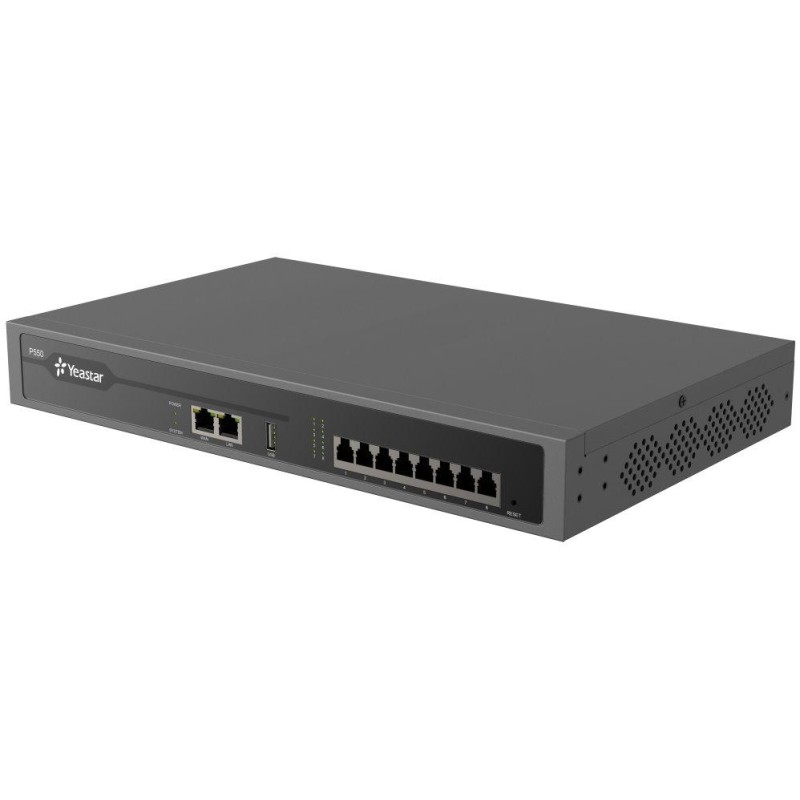

Yeastar P550
The PBX P550 can serve up to 50 users - extensions . It is a modular switchboard, so it is possible to expand the number of its ports by inserting additional modules. The switchboard is made of solid metal and is suitable for use in a rack, where it occupies 1 position (1U) .
Supported modules are:
S2 (2× analog telephone), O2 (2× analog line), BRI (2× ISDN2), SO module (1× an. telephone, 1× an. line), 3G (1× GSM channel, SIM800 version module), LTE (1× 3G/4G channel)
The exchange can contain up to 4 module slots. The exchange can use both SIP/IAX trunks for connection to VoIP operators and individual SIP accounts usually used for connection of VoIP phones.
Yeastar P-Series control panels feature a new, very user-friendly web interface. Compared to the S-Series, the design has been redesigned and a number of new features have been added. These include, for example, the ability to assign detailed permissions to individual users, an event center, an interactive Dashboard, or plotting graphs showing the control panel load.
- Max. 50 users (extensions) and 25 simultaneous calls
- Possibility to expand with S2/O2/SO/BRI/GSM modules
- Automatic call recording
- More powerful hardware
- New web interface design
- Possibility of using an integrated call center solution, including detailed reports and an operator panel
BASIC SPECIFICATIONS
Interfaces: 1× RJ-45 WAN, 1× RJ-45 LAN, 1× USB, 8× RJ-11, 4× antenna connector
Protocols: SIP, SIPS, RTP, SRTP, IAX, UDP, TCP, TLS
Codecs: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4
Power supply: internal AC 100-240V power supply
Dimensions: 340 × 210 × 44 mm
