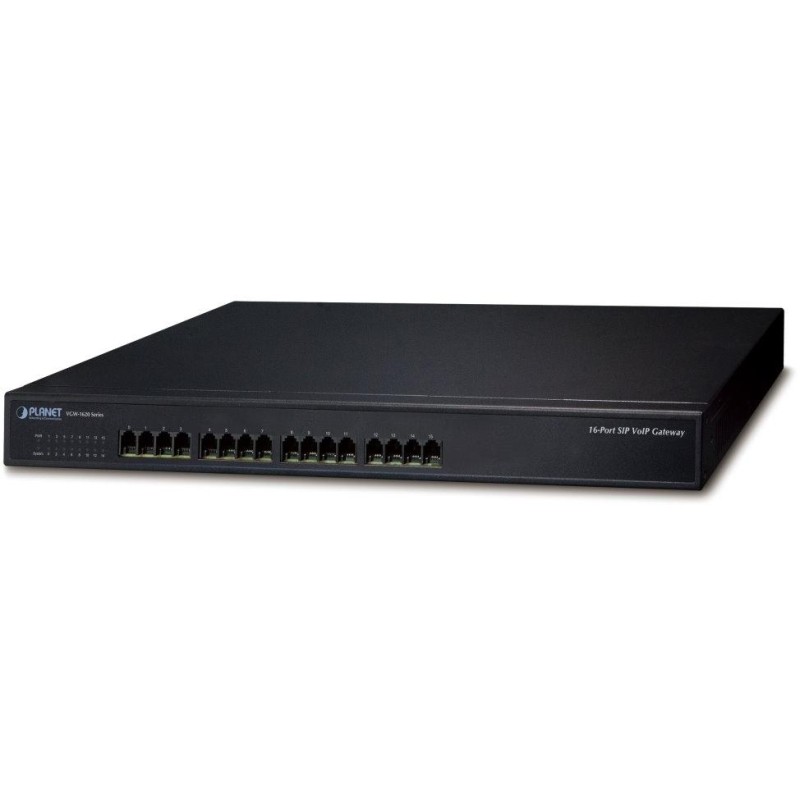

Planet VGW-1620FS VoIP gateway, 16x FXS, SIP, CallerID, Fax, Hotline, firewall, SNMP, SSH/TLS, QoS

PLANET VGW-1620FS

16-port VoIP SIP FXS gateway that provides a complete solution for integrating voice data network into unified communications. It is primarily designed for companies with branches and helps businesses save money on long-distance calls .

With its optimized SIP architecture, this device is an ideal choice for P2P/SIP proxy (IP PBX) voice communication and ITSP cost savings.

The gateway fully complies with the IETF SIP RFC3261 standard and provides a total solution for voice data network integration. It has a built-in SIP Trunk and TLS/SRTP security.

SIP application

•

• IETF SIP RFC3261 on UDP/TCP/TLS protocols

• 16x FXS connection to an analog telephone or telephone exchange (PABX)

• Faxing via T.38 and Pass-through

• ITU-T G.711 A-law, G.711 µ-law, G.723.1 and G.729 voice coding

• DTMF (in/out-of-band) (RFC4733, RFC2833 / SIP INFO)

• Echo cancellation according to ITU-T G.168, up to 128 ms

• SIP Trunk and Caller ID support: DTMF/FSK CLI Presentation


Internet features

•

• SNMP v1/v2/v3 support

• 802.1P and 802.1Q VLAN support

• Layer 3 QoS and DiffServ support

• STUN (RFC 3489) and Outbound Proxy support

• TR069 support and Auto Provisioning

• TLS/SRTP security support


Call function

•

• Call waiting, transfer (blind transfer, subscriber transfer)

• Call hold, speed dial

• Unconditional call forwarding

• Forwarding unanswered calls

• Hotline, speed dial, direct IP call

• Do Not Disturb (DND), three-way conference


BASIC SPECIFICATIONS

Connections: 4x 10/100 Base-TX RJ-45, 16x RJ-11/FXS (Foreign eXchange Station), 1x RJ-45 (RS-232 console)

Max. line length: 3 km

Power supply: internal AC 100-240 V power supply, power consumption up to 30 W

Operating temperature: 0 to +45 °C

Dimensions: 440 x 230 x 44 mm

Weight: 2.7 kg
