Planet VGW-420FO VoIP gateway, 4x FXO, SIP, CallerID, Fax, firewall, SNMP, TLS/SRTP, QoS

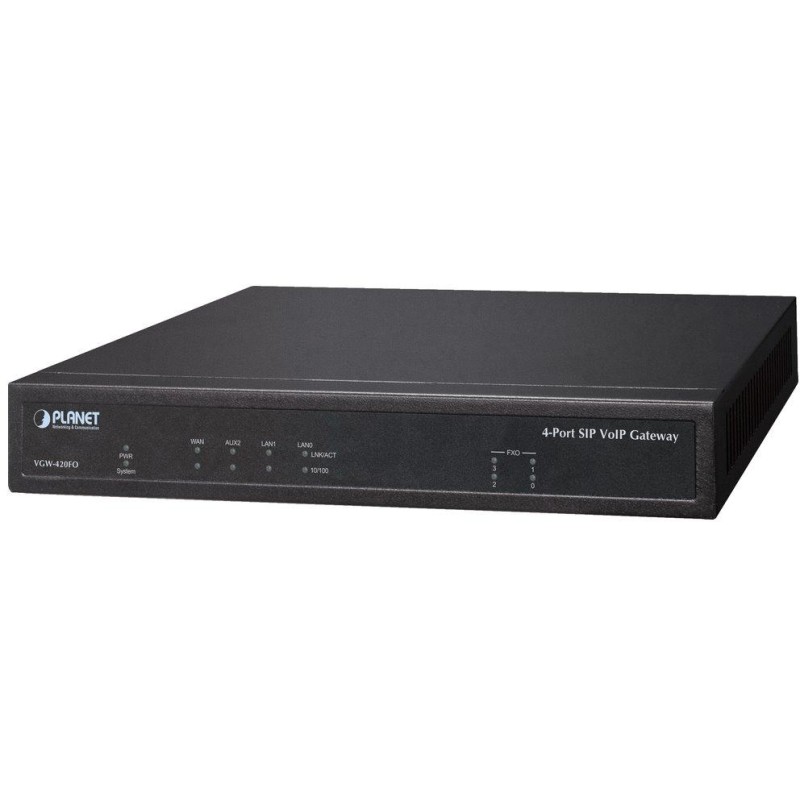

PLANET VGW-420FO

4-port VoIP SIP FXO gateway that provides a complete solution for integrating voice data network into unified communications. It is designed primarily for companies with branches and helps businesses save money on long-distance calls .

The gateway fully complies with the IETF SIP RFC3261 standard and provides a total solution for voice data network integration. It has a built-in SIP Trunk and TLS/SRTP security.

SIP application

•

• IETF SIP RFC3261 on UDP/TCP/TLS protocols

• 4× FXO connection to an analog telephone or telephone exchange

• Faxing via T.38 and Pass-through

• ITU-T G.711 A-law, G.711 µ-law, G.723.1 and G.729 voice coding

• DTMF (in/out of band), RFC2833 / SIP INFO

• Echo cancellation according to ITU-T G.168, up to 128 ms

• SIP Trunk and Caller ID support: DTMF/Pulse Dialing/FSK


Internet features

•

• SNMP v1/v2c/v3 support

• 802.1P and 802.1Q VLAN support

• Layer 3 QoS and DiffServ support

• STUN (RFC 3489) and Outbound Proxy support

• TR069 support and Auto Provisioning

• TLS/SRTP security support


BASIC SPECIFICATIONS

Connections: 3× 10/100 Base-TX RJ-45 (2× LAN + 1× WAN), 4× RJ-11/FXO

Power supply: external adapter DC 12 V, 2 A (included)

Operating temperature: 0 to +50 °C

Dimensions: 242 × 152 × 35 mm

Weight: 853g
