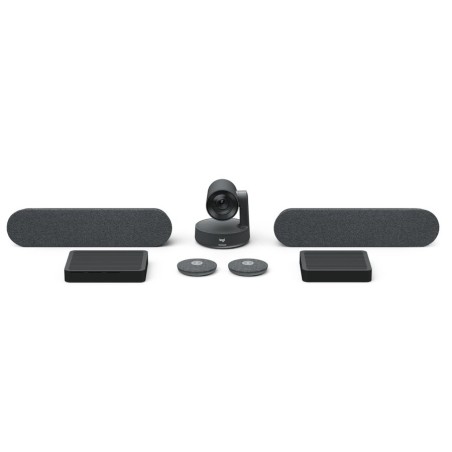

Logitech Rally Ultra-HD ConferenceCam, 2 mics, 2 speakers - BLACK - EMEA

•RightSense™ technology enables more efficient use
•Modular sound for full coverage of medium to large venues
• Professional components and sleek industrial design

Dimensions

Rally Camera
Height x width x depth: 182.5 mm x 152 mm x 152 mm

Rally speaker
Height x width x depth: 103 mm x 449 mm x 80 mm

Rally desktop microphone
Height x width x depth: 21 mm x 102 mm x 102 mm

Rally Video Hub
Height x width x depth: 40 mm x 206 mm x 179 mm

Rally desktop hub
Height x width x depth: 40 mm x 176 mm x 138 mm

System requirements

Operating systems
Windows® 7, Windows 8.1 or Windows 10
macOS 10.10 or higher

Chrome OS?

Resolution higher than 1080p
Windows 8.1 and above or macOS 10.10 and above
USB 3.0 port and Type-C cable
Compatible software

RightSense technology

RightLight with WDR
Compensation for lack of lighting
Image noise reduction
Saturation optimization in low light conditions
Renders the natural skin tones of each participant in the camera frame
It suppresses backlight and brightness without darkening the entire image.

RightSight1

Human figure detection
Automatic capture of participants when the conference starts
Automatic participant capture on demand
Automatic adjustment of the participants' view during the conference 1

RightSound
Artificial intelligence capable of machine learning that can distinguish human speech from other sounds
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Ambient noise cancellation
Automatic balancing of high and low voices


Microphone array with RightSound
• Factory-paired, ultra-low distortion lateral beamforming algorithm directs the microphone directly at the speaker for the best voice pickup and noise reduction
•Supports up to 56 acoustic beams (8 per Rally table microphone) for focusing on the active speaker
•Beam focus refresh rate: 8 ms (125 times per second)

Anti-vibration damping:
•A patent-pending damping system separates the speaker module with an external enclosure, virtually eliminating vibrations transmitted through walls, stands and tables. This enhances the effectiveness of Rally table microphones’ echo cancellation while ensuring clarity and stability of the image even at high volume levels and when zoomed in.
•Treble limiting algorithm prevents even short-term clipping of the speaker's treble to suppress distortion

Technical parameters

RALLY CAMERA
The Ultra HD video system supports resolutions:
•4K, 1440p, 1080p, 900p, 720p and SD at 30 fps
•1080p, 720p at 30fps and 60fps


Smooth motorized pan, tilt and zoom

Rotation: ±90°
Tilt: +50°/-90°
15x HD zoom
90° field of view
Autofocus function
3 camera presets
Kensington security slot
Mute/unmute LED indicator
Standard tripod thread
The lens is stored at a -90° position when not in use for maximum privacy

RALLY DESKTOP MICROPHONE
Sound pickup range: 4.5 m diameter
Four omnidirectional microphones forming eight acoustic beams
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Ambient noise cancellation
Mute button with LED indicator
2.95m attached 12-pin cable
Lip Remote connection of up to 7 Rally table microphones
Frequency range: 90 Hz–16 kHz
Sensitivity: >-27 dB +/-1 dB at 1 Pa
Microphone range: 48 kHz

Recommended number of participants:
Rally (one table microphone): 10
Rally Plus (two table microphones): 16
Additional participants with each additional table microphone: 6
Recommended number of Rally participants with 7 table microphones: 46


RALLY SPEAKER
High-performance 76mm speaker with rare earth magnet
Patent-pending damping system eliminates camera shake caused by vibrations and audio interference
The miniXLR cable is used to connect the Rally video splitter to the signal and power connector
Speaker volume: 95 dB SPL at 1 W, 100 dB SPL at 7.5 W, always with +/-2 dB at 1 meter
Sensitivity: 95 +/-2 dB SPL at 1 meter
Distortion: 200 Hz – 300 Hz < 2.5%, 300 Hz – 10 kHz < 1% at 7.5 W
Speaker sampling frequency: 48 kHz

RALLY DESKTOP HUB
Single CAT6A cable connection to Rally video splitter (5m cable included; compatible with user-supplied cables up to 50m)
Active speaker detection: analyzes sound from up to 7 desktop microphones and 56 beams every 8 ms
12-pin connector for Rally desktop microphone
HDMI Type A connection to video splitter (x2)
USB Type-C
USB Type A (reserved for future features)
USB Type B (connect to computer in meeting room)
RJ45 (reserved for future features)
Power input

RALLY IMAGE HUB
HDMI Type A (x2) (connect to display)
USB C (connection to Rally camera)
USB Type B (connect to computer in meeting room)
RJ45 (connects to desktop hub)
Mini XLR (x2)
Power supply for one to two Rally speakers
Power input

REMOTE CONTROL
RF remote control (line of sight not required)

CR2032 battery (included)


CABLES/POWER SUPPLY
Camera > video splitter
2m cable USB 3.1 Type C > USB 3.1 Type C

Computer in conference room > video/desktop hub
2m cable USB 3.1 type A > USB type B

Video hub > desktop hub
5m CAT6A Ethernet cable (compatible with user-supplied cables up to 50m)

Video splitter > speaker (x2)
2.95m miniXLR cable (compatible with user-supplied extension cables up to 3m)

Computer in conference room > screen (x2)
2m HDMI cable type A

Desktop microphone
2.95m attached cable with 12-pin connector

Socket > power supply (x2)
1m

Power supply > video/desktop splitter (x2)
1.5m

AVAILABLE ACCESSORIES
RALLY MOUNTING KIT
Rally mounting kit with cable clamps (x2) and mounting bracket for camera, speakers (x2) and hubs (x2)

RALLY DESKTOP MICROPHONE
Connect up to 7 Rally table microphones for better sound coverage in large rooms

RALLY DESKTOP MICROPHONE SPLITTER
Connect 1 to 3 Rally table microphones (or other hubs) for greater flexibility in placement and cable routing under the table

RALLY SPEAKER
Connecting a second Rally speaker for a larger room


COMPATIBILITY AND CERTIFICATION
USB plug-and-play connection


Certified for Skype for Business and ready for Teams
Certified for Zoom
Certified for Google Hangouts Meet hardware
Certified for Microsoft Cortana®
Compatibility with Cisco Jabber® and WebEx
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo and other video conferencing, recording and broadcasting applications that support USB cameras

Packaging:

Size x:73 cm

Dimensions: 46 cm

Size: 23 cm

Weight:13 kg
