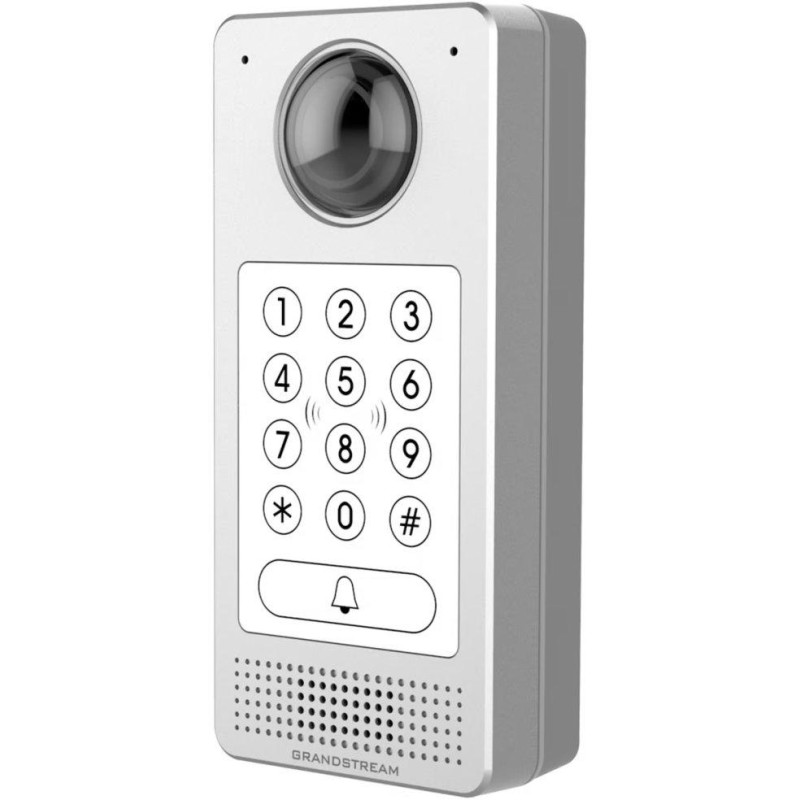

Grandstream GDS3710
Multifunctional IP video door entry system that serves as a Full HD IP camera and intercom for securing entrances to buildings of all sizes. It offers a wide 180° viewing angle , an integrated RFID reader for keyless access, a built-in microphone and speaker for two-way communication and supports connection to alarm systems . It supports SIP/VoIP communication , allows direct video and audio stream to smartphones, SIP devices and GDS Manager software, which is used for central management of cards, video recordings and the entire device .
It features PoE power for easy installation, LED lighting , motion sensor , light switch and offers open API for integration with other systems. Combined with GXP21xx series IP phones, GXV video phones and GS-Wave mobile app, it provides a comprehensive solution for access control, video intercom and security surveillance.
- Full HD camera – 180° wide-angle lens with Full HD resolution for detailed recording.
- Integrated RFID reader – supports cards and tags for secure access.
- Two-way audio – built-in microphone and speaker with noise and echo cancellation.
- Bright LED lighting – ensures visibility even in low light.
- SIP/VoIP support – ability to call IP phones or software clients.
- Weather resistance – IP66 protection for outdoor use.
- Vandalism resistance – robust metal construction with IK09 protection protects the device from damage.
- PoE support – power and connection via a single Ethernet cable.
- ONVIF support – compatibility with a wide range of security systems and NVRs.
- Management using GDS Manager – central software for configuring and managing multiple devices.
- Easy integration – compatible with Grandstream phone systems and other devices.
BASIC SPECIFICATIONS
Camera: 2 Mpx, 1920 × 1080, LED illumination, viewing angle 180° horizontally, 150° vertically
Display: no
Keyboard: yes, backlit
Interface: 1× 10/100 Mbps RJ-45, 2× relay (AC 125 V/ 0.5 A or DC 30 V/ 2 A, for electric lock, light switch or other high-voltage device), 2× optocoupler input (for door sensor or other low-voltage device), RS-485, Wiegand (26 bits, input + output)
Power supply: DC 12 V/ 1 A (adapter not included), or PoE (802.3af)
Audio: built-in 2W speaker, built-in microphone
Audio codecs: G.711µ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC
PoE support: yes
Protection: waterproof according to IP66, anti-vandal according to IK09
Operating temperature: -30 to +60 °C
Dimensions: 173 × 80 × 36 mm
Weight: 600g
Color: silver
