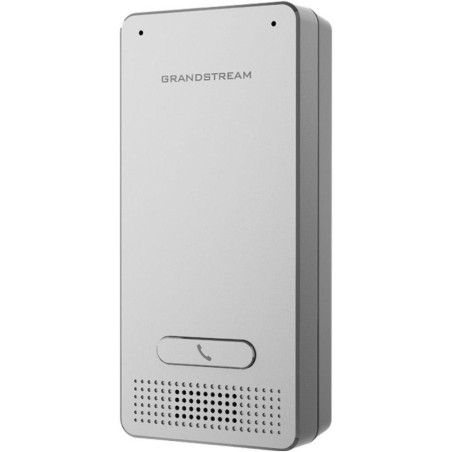

Grandstream GDS3702 door intercom

Grandstream GDS3702

IP intercom with HD audio . Offers remote access control to objects of all sizes. Integrated PoE interface for powering the device and ensuring network connection. Built-in microphone and speaker for two-way communication.

Wall mounting, flush mounting possible (requires mounting kit, not included). Weatherproof ( IP66 ) and vandal-proof ( IK10 ) housing.

•

• Support for SIP calls to IP phones for easier communication

• Weatherproof (IP66) and vandalism-resistant (IK10) metal housing

• 2× relay for electric lock and alarm output, 2× alarm input for Exit button and door sensor

• Integrated microphone and speaker

• Management with GDS Manager


BASIC SPECIFICATIONS

Camera: no

Display: no

Keyboard: no

Interface: 1× 10/100 Mbps RJ-45, 2× relay (AC 125 V/ 0.5 A or DC 30 V/ 2 A, for electric lock, light switch or other high-voltage device), 2× optocoupler input (for door sensor or other low-voltage device)

Power supply: DC 12 V/ 1 A (adapter not included), or PoE (802.3af)

Audio: built-in 2W speaker, built-in microphone

Audio codecs: G.711µ/a, G.722, DTMF (RFC2833, SIP INFO), AEC, ANC

PoE support: yes

Protection: waterproof according to IP66, anti-vandal according to IK10

Operating temperature: -30 to +60 °C

Dimensions: 173 × 80 × 36 mm

Weight: 672g

Color: silver
