EZVIZ HP5

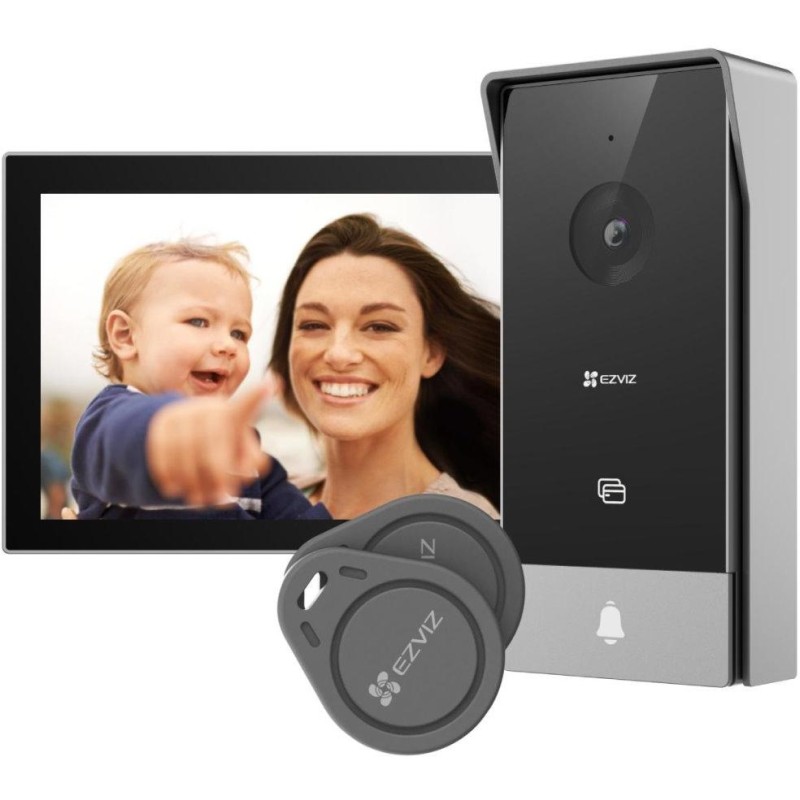

Door station (intercom) set with RFID chip reader, 7" home monitor and accessories.
The door station is equipped with one doorbell and a camera with a resolution of 1920 × 1080 px . The camera's viewing angle is 134° diagonally. It uses the H.265 codec for image transmission. Of course, there is an integrated microphone, speaker and RFID access chip reader. The doorbell is connected via 2 wires. The 7" touch monitor can be connected via Wi-Fi and has a microSD slot . Remote control via app , surface mounting , weather resistance. Smart features include an optional voice change function to maintain privacy during communication or remote lock control .
Unlocking methods:
- RFID chip
- mobile application
- from the internal monitor display
Package contents: intercom, 7" monitor , wall mount for monitor, 2× drilling template (for monitor and intercom panel), power adapter and cable (for monitor), screwdriver, 2× RFID chip, 3× set of screws.
BASIC SPECIFICATIONS
Door station
Camera: 1/2.7" progressive scan CMOS
Lens: fixed, f = 2 mm, angle of view 134° diagonally
Resolution: 1920×1080 at 15 fps
IR illumination: yes, up to 6 m
RFID card reader: yes, 2 chips in the package
Interface: 1× 2-wire for monitor, 1× non-powered contact for gate, 1× contact for lock
Audio: integrated microphone and speaker
Number of bells: 1
Power supply: from monitor
Dimensions: 163.7 x 92.85 x 19.5mm
Color: black–silver
Home monitor
Display: 7" touch screen, resolution 1024 × 600 px
Interface: 1× 2-wire for door station, 1× microSD card slot (max. 512 GB)
Network: Wi-Fi 802.11b/g/n/ac
Video compression: H.265/H.264
Audio: integrated microphone and speaker
Power supply: DC 24 V/ 1.5 A, consumption max. 24 W (power supply included)
Dimensions: 180.3 x 111.6 x 15.2mm
Weight: 639g
Color: black
