HiLook VI-K46P
Door station (intercom) set with RFID chip reader and 4.3" home monitor .
The door station is equipped with a camera with a resolution of 1920 × 1080 px and a viewing angle of 131° horizontally. It uses the H.264 codec for image transmission. Of course, there is an integrated microphone, speaker and RFID access chip reader. The connection between the doorbell and the monitor is realized wired using the RJ-45 port. The 4.3" touch monitor can be connected to the network using RJ-45 or Wi-Fi . Remote control via the Hik-Connect application is also available. The door station is resistant to adverse influences according to IP65 certification. In addition to the power adapter, PoE technology is also available for power supply.

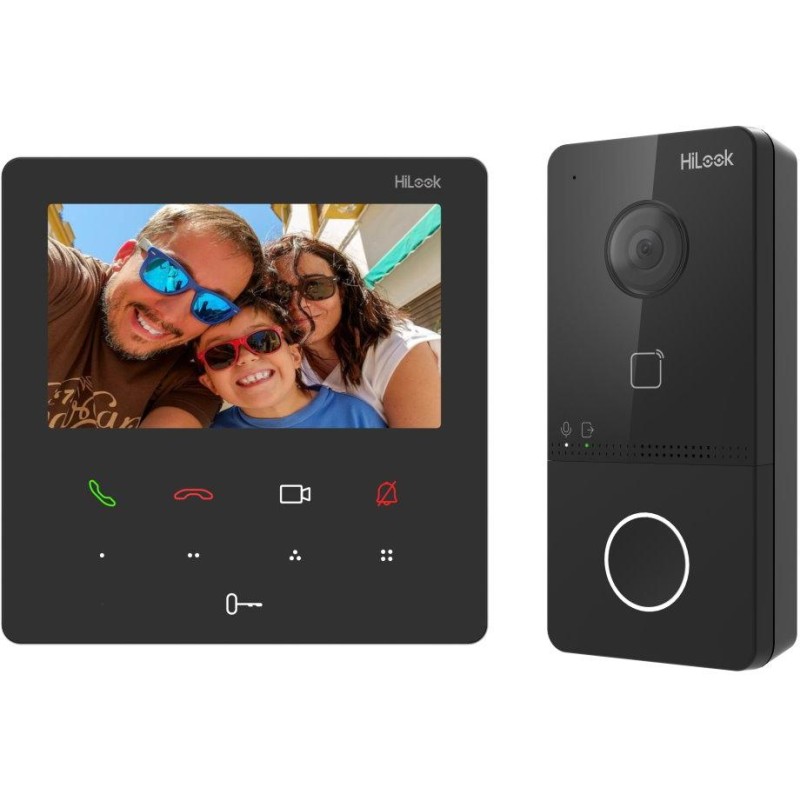

The product photo is illustrative, the set also includes a rain shield.
BASIC SPECIFICATIONS
Door station
Camera: 2 Mpx
Lens: fixed, angle of view 131° horizontally, 78° vertically
Resolution: 1920 × 1080 px
IR illumination: yes, up to 3 m
RFID card reader: yes
Interfaces: 4× alarm input, 1× RJ-45, 1× tamper, 1× RS-485, 1× exit button, 1× door contact, 1× lock contact (relay, max. 30 V DC, 2 A)
Audio: integrated microphone and speaker
Video compression: H.264
Power supply: 12 V DC or PoE (802.3af), power adapter included
Dimensions: 138 × 65 × 27 mm
Color: black
Home monitor
Display: 4.3" touch, resolution 480 × 272 px
Interface: 1× RJ-45
Network: Wi-Fi 802.11b/g/n, 2.4GHz
Audio: integrated microphone and speaker
Power supply: 12 V DC or PoE (802.3af), power adapter included
Dimensions: 120 × 120 × 21 mm
Color: black
