EZVIZ EP7

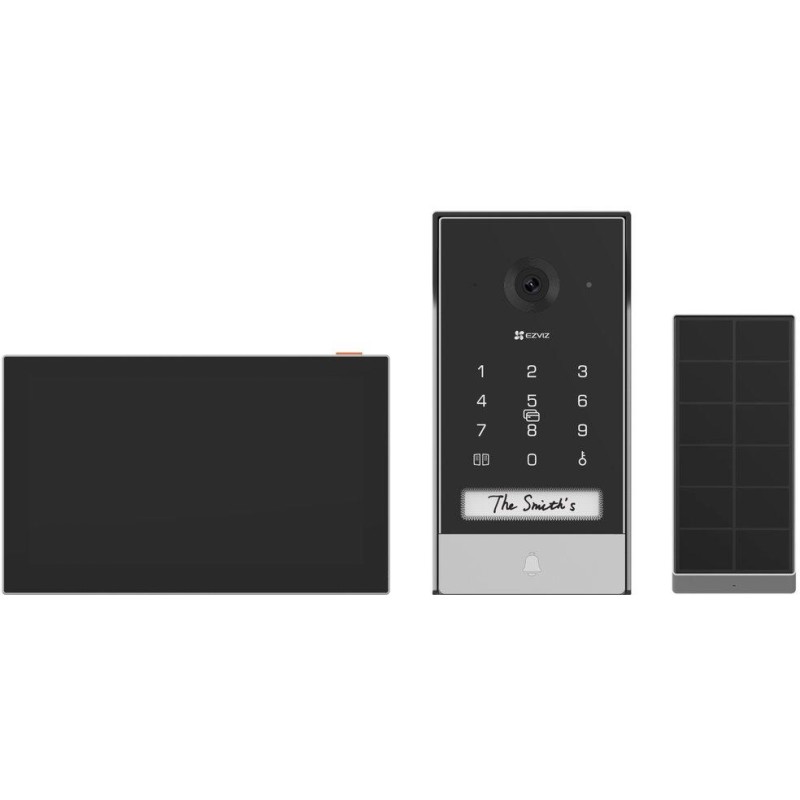

Set of door station (intercom) with RFID chip reader and keypad, 7" home monitor , solar panel and accessories.
The door station is equipped with one doorbell , a numeric keypad and a camera with a resolution of 2048 × 1296 px . The camera's viewing angle is 162° diagonally. It uses the H.265 codec for image transmission. Of course, there is an integrated microphone, speaker and RFID access chip reader. The connection between the doorbell and the monitor is realized wirelessly using Wi-Fi HaLow technology. It operates in the band below 1 GHz and thus penetrates walls and obstacles more easily, has a longer transmission range and lower energy consumption. The 7" touch monitor can be connected to the network via Wi-Fi and has a microSD slot . Smart features include the ability to generate a temporary visitor code or an optional voice change function to maintain privacy during communication. Remote control via app , surface mounting , resistance to adverse influences according to IP65 certification. The door unit is powered by a rechargeable battery with a capacity of 2600 mAh and a battery life of up to 85 days, which is recharged using a solar panel or using the included USB cable.
Package contents: intercom, 7" monitor, solar panel , weatherproof cover for intercom, wall mount for monitor, power adapter for monitor, drilling template for intercom and monitor, 2x screwdriver, batteries for intercom panel, power cable for battery, 3x RFID chip, power cable with jack connector, 3x set of screws, spare screws for intercom, 2x name tag, pin.
BASIC SPECIFICATIONS
Door station
Camera: 1/2.7" progressive scan CMOS
Lens: fixed, angle of view 162° diagonally
Resolution: 2048 × 1296 at 15 fps
IR illumination: yes, up to 6 m
RFID card reader: yes, 3 chips in the package
Interface: Wi-Fi HaLow, 1× gate contact, 1× lock contact, 1× solar panel connector
Audio: integrated microphone and speaker
Number of bells: 1
Power supply: rechargeable battery, 2600 mAh (7.3 V) + solar panel
Dimensions: 175.5 × 86.4 × 33.8 mm
Color: black–silver
Home monitor
Display: 7" touch screen, resolution 1024 × 600 px
Interface: 1× microSD card slot (max. 512 GB), 1× power port
Network: Wi-Fi 802.11b/g/n/ac + Wi-Fi HaLow
Video compression: H.265/H.264
Audio: integrated microphone and speaker
Power supply: DC 12-24 V (power supply included)
Dimensions: 180 × 112 × 15 mm
Color: black
Solar panel
Maximum output: 8.1V/ 0.24A
Peak power (PMAX): 1.2 W
Charging current: 240 mA
Protection level: IP65
Operating temperature: -20 to 50 °C
Dimensions: 126 × 59 × 44 mm
Color: black
