XtendLan Vertical mounting rail ECO 42U, for servers 480mm wide, black

XtendLan VLISTAF42B ECO

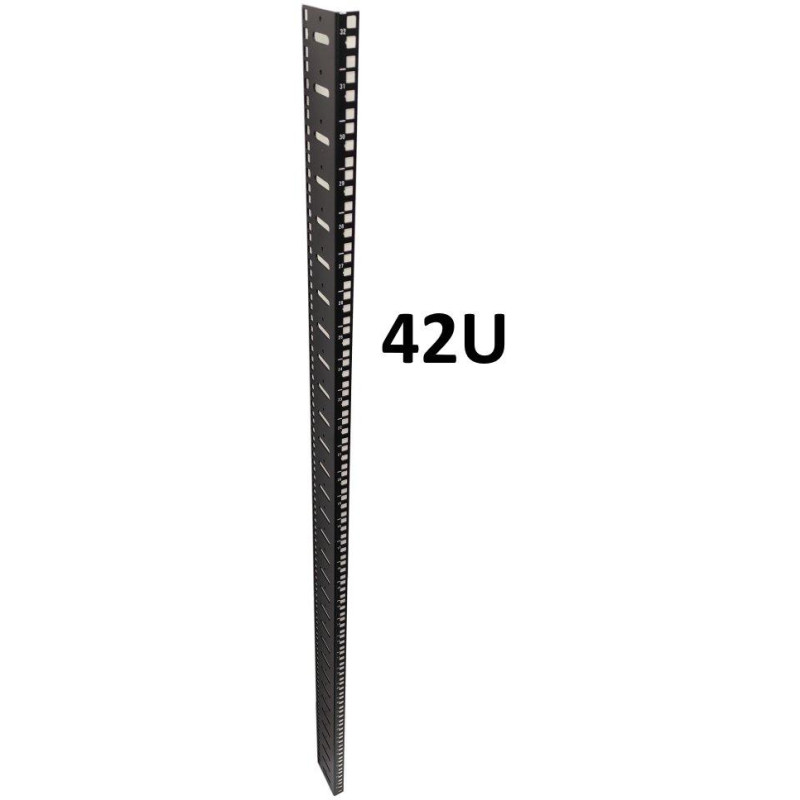

Illustrative photo – The bar is 42U high.

Vertical mounting rail 42 U allowing installation of 480mm devices (width across the entire depth of the cabinet) . For front mounting, a single pair is sufficient. For rear support, two pairs must be ordered.

Servers installed in 19" racks are often mounted on slide-out rails and require 480 mm of space to be available throughout the entire depth of the cabinet. As standard, HPER and ECO racks are supplied with vertical mounting rails in a U-shaped profile that allows for the installation of side-mounted shelves, but takes away from the internal profile, so the continuous width is 470 mm. Therefore, customers who plan to use for servers and KVM requiring full width need to order these vertical mounting rails and replace them with the standard ones.

BASIC SPECIFICATIONS

Rail dimension: 42U × 80 mm × 23 mm

Color: black

Compatibility: HPER and ECO series rack cabinets

Note: When using these rails, it is not possible to install shelves with side mounting BPOLICE, BKPOLICE, BVPOLICE or it is not possible to do this without a spacer. It is necessary to use shelves with front mounting CPOLICE.
