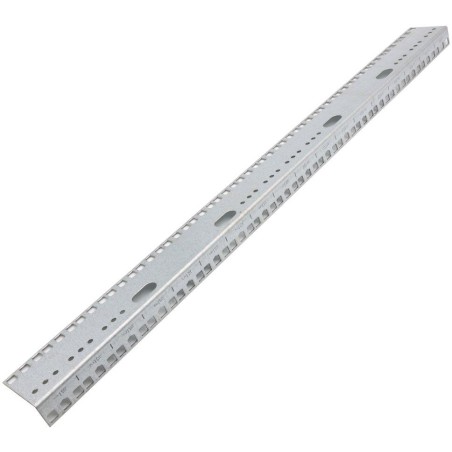

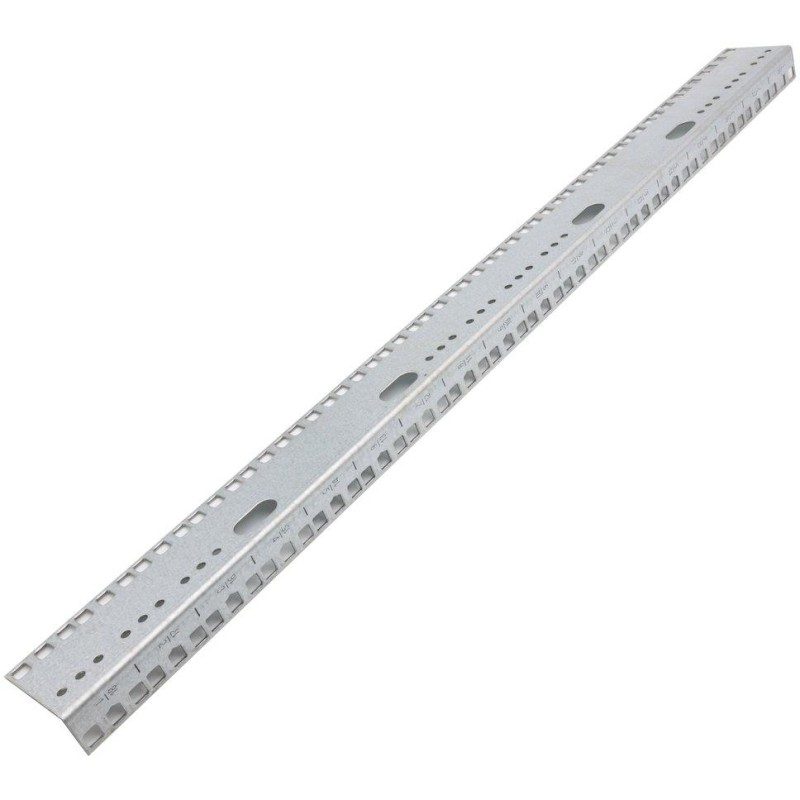

XtendLan Vertical mounting rail Telco 18U, for servers 480mm wide, silver

XtendLan VLISTAF18B

Vertical mounting rail 18 U allowing installation of 480mm devices (width across the entire depth of the cabinet) . For front mounting, a single pair is sufficient. For rear support, two pairs must be ordered.

Servers installed in 19" racks are often mounted on slide-out rails and require 480 mm of space to be available throughout the entire depth of the cabinet. As standard, TELCO and ECO racks are supplied with vertical mounting rails in a U-shaped profile that allows for the installation of side-mounted shelves, but takes away from the internal profile, so that the continuous width is 470 mm. Therefore, customers who plan to use for servers and KVM require full width, need to order these vertical mounting rails and replace them with the standard ones.

BASIC SPECIFICATIONS

Rail dimension: 18U × 80 mm × 23 mm

Color: silver

Note: When using these rails, it is not possible to install shelves with side mounting BPOLICE, BKPOLICE, BVPOLICE or it is not possible to do this without a spacer. It is necessary to use shelves with front mounting CPOLICE.
