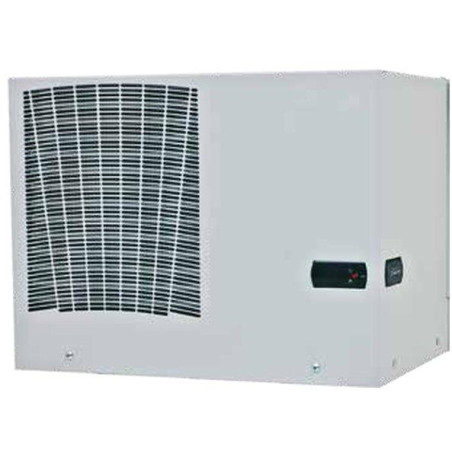

Triton RAC-KL-ETE-Y2 2 kW
Cooling unit specially designed for active temperature control and mounting on the top of the RDE, RIE and RPE series rack cabinets . It takes heat from the cabinet and transfers it to the immediate surroundings, therefore no piping or other lines are required. The unit consists of two separate air circulation circuits : the internal one , which cools the installed technologies and enters the air conditioning unit, where it transfers heat to the cooling medium, and the compressor one , which cools the compressor and the cooling medium with the ambient air flow. Thanks to this arrangement, the air from the environment and the air circulating inside the cabinet do not mix, and the humidity inside the cabinet does not increase. The unit also includes a drip tray to collect condensed moisture, which evaporates into the surrounding space in the connected evaporation tray. In cases of higher humidity or significantly lower internal temperatures, it is recommended to connect a safety condensate drain according to the installation manual. The unit can be adapted to specific dimensions and airflow direction using optional adapters (not included).
The ETE air conditioning unit series is designed for operation in a horizontal position as ceiling units of rack cabinets.
BASIC SPECIFICATIONS
For distribution boards: RIE, RDE, RPE, width 600/800 mm
Mounting type: roof (horizontal)
Refrigerant: R134a
Cooling power: 2000 W
Temperature setting range: 25-45°C
Airflow volume: 860 m 3 /h
Electrical power: 1200 W
Noise level: 62 dB
Operating temperature: 10-50°C
Power supply: 230V, 50/60Hz
Dimensions: 600 × 450 × 408 mm
Weight: 51.5 kg
