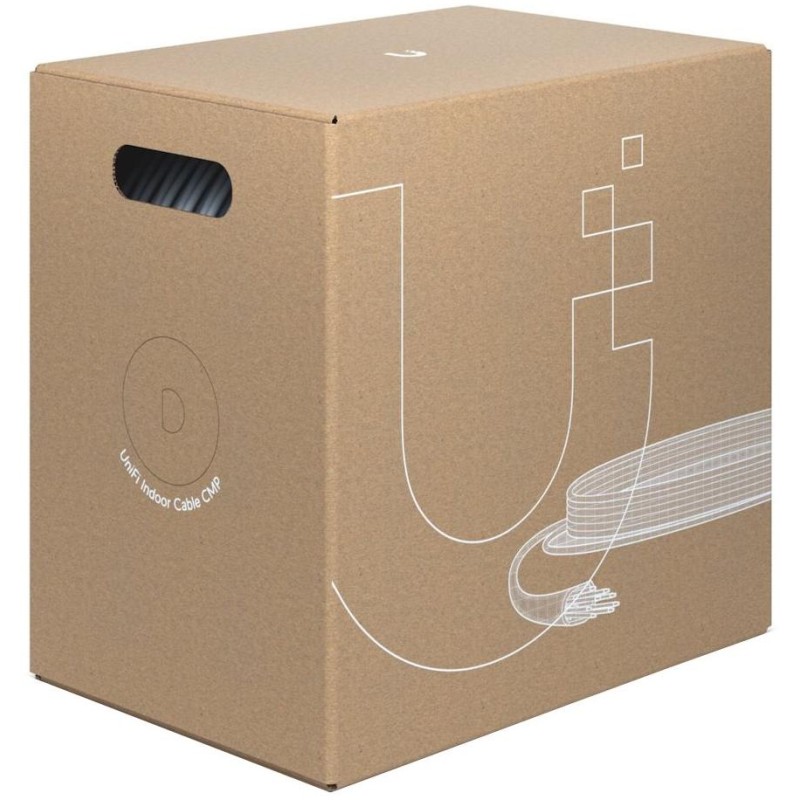

Ubiquiti UniFi Indoor Cable CMP - UTP cable, Cat6, 23 AWG, Plenum CMP, box 305m

Ubiquiti UniFi Indoor Cable CMP

Cat6 Ethernet cable for high-speed deployment in environments that require Plenum- rated cabling.

The cable meets the requirements specified in the international standards ISO/IEC 11801 and TIA/EIA-568-C.2 . The conductors of these cables are made of high-quality copper wire with a cross-section of AWG 23 .

•

• Multi-purpose Category 6 UTP communication cable

• Plenum (CMP), fire-resistant casing

• Anti-crosstalk divider

• TIA-568-C.2 standard (2009)

• For indoor use

• Cable length 305 m (box)


Technical parameters


Category: Cat6

Supported protocols: 10/100/1000Base-T

Shielding: no

Reference bandwidth: up to 600 MHz

Wire type and size: copper wire (AWG23)

Conductor material: copper

Sheath: Low smoke flame retardant PVC

Fire resistance: CMP

Color: white

Cable diameter: 5.6mm ± 0.2mm

Bending radius: min. 22.4 mm

Tensile strength: max. 110 N

Storage temperature: -20 to +75 °C

Operating temperature: -20 to +60 °C

Installation temperature: 0 to +60 °C

Anti-crosstalk divider: yes

Ripcord: yes

Packaging: 305 m, box

BASIC SPECIFICATIONS

Category: Cat6

Shielding: no

Conductor: AWG 23 copper wire

Sheath type: polyvinyl chloride (PVC)

Color: white

Shell diameter: 5.6 mm

Length: 305 m
