Solarix SXKD-6-UTP-LSOHFR-B2ca 500 m

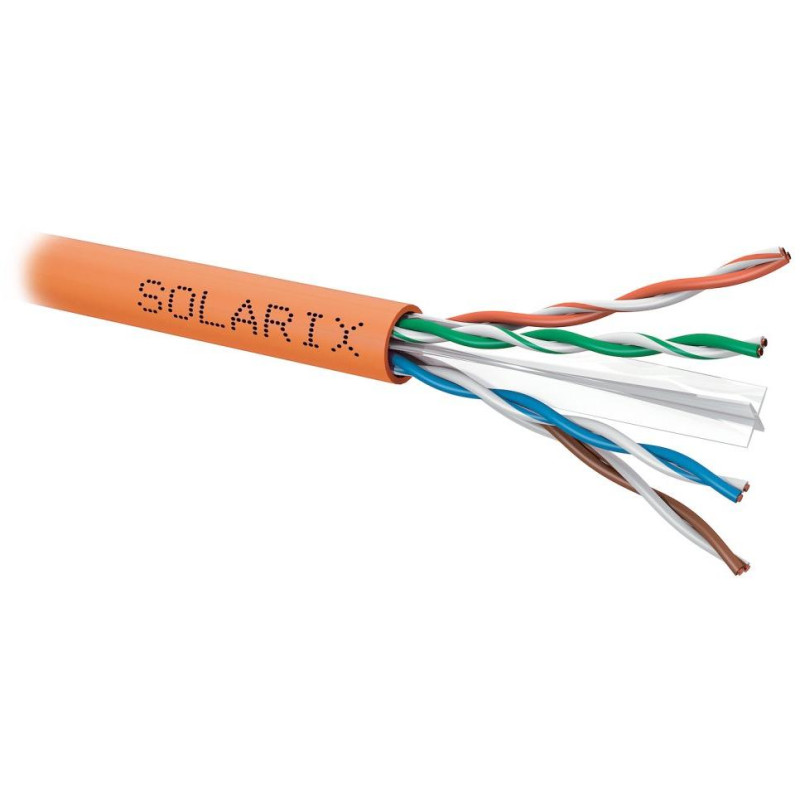

Reliable outdoor unshielded U/UTP cable of the Cat6 category, which is designed for the operation of Ethernet protocols, including 2.5G Base-T and 5G Base-T. The cable construction is U/UTP with a plastic cross , which ensures maximum separation of pairs from each other along the entire length of the cable. The sheath type is LSOHFR with a fire reaction class B2 ca s1,d1,a1 . The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D . Like other Solarix cables, the SXKD-6-UTP-LSOHFR-B2ca cable is marked with a meter reading of 1 m in the range from 0 to 500 m. The cable is delivered on a high-strength wooden spool, which contains all the necessary product information, including barcodes, production batch, description and the most important technical parameters.
Technical parameters
Category: CAT6
Supported protocols: 2.5/5G Base-T and lower
Shielding: no
Bandwidth: 250MHz
Conductor type and size: copper wire 0.55 mm ± 0.005 mm
Conductor material: copper (99.97% purity)
Insulation and conductor diameter with insulation: HDPE 0.98 mm
Reaction to fire class: B2 ca s1,d1,a1; LSOHFR
Color: orange (RAL 2003)
Cable diameter: 6.6 mm
Weight: 54.1 kg/km
NVP: 69%
Propagation delay: 535 ns/100 m
Delay skew: ≤45 ns/100 m
Storage temperature: -20 to +60 °C
Operating temperature: -20 to +60 °C
Installation temperature: 0 to +50 °C
Packaging: 500 m, wooden spool
BASIC SPECIFICATIONS
Category: CAT6
Shielding: no
Conductor type and size: copper wire 0.55 mm ± 0.005 mm
Insulation: polyethylene (HDPE) 0.98 mm
Shell: LSOHFR
