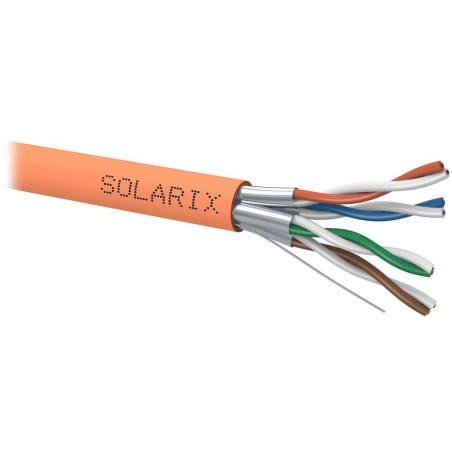

Solarix SXKD-6A-STP-LSOH-B2ca 500 m
High-quality shielded STP cable of the Cat6A category, which is designed for the operation of high-speed Ethernet protocols, including 10G Base-T. The cable construction is U/FTP , LSOH sheath type with fire reaction class B2ca-s1,d1,a1 . The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D . Like other Solarix cables, the SXKD-6A-STP-LSOH-B2ca cable is marked by meterage in 1 m in the range from 0 to 500 m. The cable is supplied on a high-strength wooden spool, on which all the necessary product information is indicated, including barcodes, production batch, description and the most important technical parameters.
Technical parameters
Category: Cat6A
Supported protocols: 10G Base-T and below
Shielding: yes, foil around each pair
Bandwidth: 500MHz
Conductor type and size: copper wire 0.56 mm ± 0.005 mm
Conductor material: copper (99.97% purity)
Insulation: skin-foam-skin polyethylene (PE) 1.33 mm
Casing: LSOH
Reaction to fire class: B2 ca -s1,d1,a1
Color: orange (RAL 2003)
Cable diameter: 7.6 mm
Weight: 55.4 kg/km
NVP: 75% (Nominal Velocity of Propagation - ratio of signal speed in the cable to the speed of light in %)
Propagation delay: 480 ns/100 m (Signal delay on one pair)
Delay skew: ≤45 ns/100 m (Signal delay difference between the fastest and slowest pair)
Storage temperature: -20 to +60 °C
Operating temperature: -20 to +60 °C
Installation temperature: 0 to +50 °C
Packaging: 500 m, wooden spool
Package dimensions: 390 x 380 x 380 mm
BASIC SPECIFICATIONS
Category: Cat6A
Shielding: yes
Conductor type and size: copper wire 0.56 mm ± 0.005 mm
Insulation: polyethylene (PE) 1.33 mm ± 0.05 mm
Casing: LSOH
