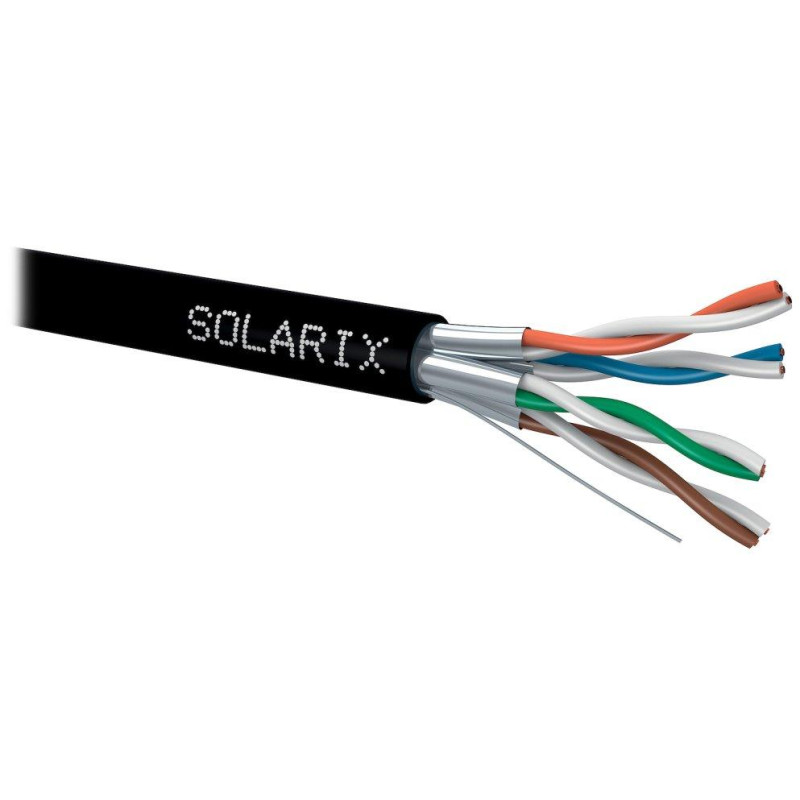

Solarix Cable STP wire CAT6A STP PE Fca 500m/reel SXKD-6A-STP-PE

Solarix SXKD-6A-STP-PE 500 m

Reliable outdoor shielded STP cable of the Cat6A category, which is designed for the operation of high-speed Ethernet protocols, including 10G Base-T. The cable construction is U/FTP , the sheath type is UV stable PE with a fire reaction class Fca and a degree of protection IP67 . The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D . Like other Solarix cables, the SXKD-6A-STP-PE cable is marked by meterage in 1 m in the range from 0 to 500 m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters. When installing in the ground, we always recommend using an HDPE conduit.

Technical parameters

Category: Cat6A

Supported protocols: 10G Base-T and below

Shielding: yes, foil around each pair

Bandwidth: 500MHz

Conductor type and size: copper wire 0.56 mm ± 0.005 mm

Conductor material: copper (99.97% purity)

Insulation: polyethylene (PE) 1.33 mm

Sheath: PE - polyethylene

Reaction to fire class: F _ca

Color: black (RAL 9005)

Cable diameter: 7.3 mm

Weight: 46.2 kg/km

NVP: 75%

Propagation delay: 480 ns/100 m

Delay skew: ≤45 ns/100 m

Storage temperature: -20 to +70 °C

Operating temperature: -20 to +70 °C

Installation temperature: 0 to +50 °C

Packaging: 500 m, wooden spool

BASIC SPECIFICATIONS

Category: Cat6A

Shielding: yes

Conductor type and size: copper wire 0.56 mm ± 0.005 mm

Insulation: polyethylene (PE) 1.33 mm ± 0.05 mm

Sheath: PE
