Solarix Cable CAT6 UTP PE Fca outdoor 500m/reel SXKD-6-UTP-PE

Solarix SXKD-6-UTP-PE 500 m

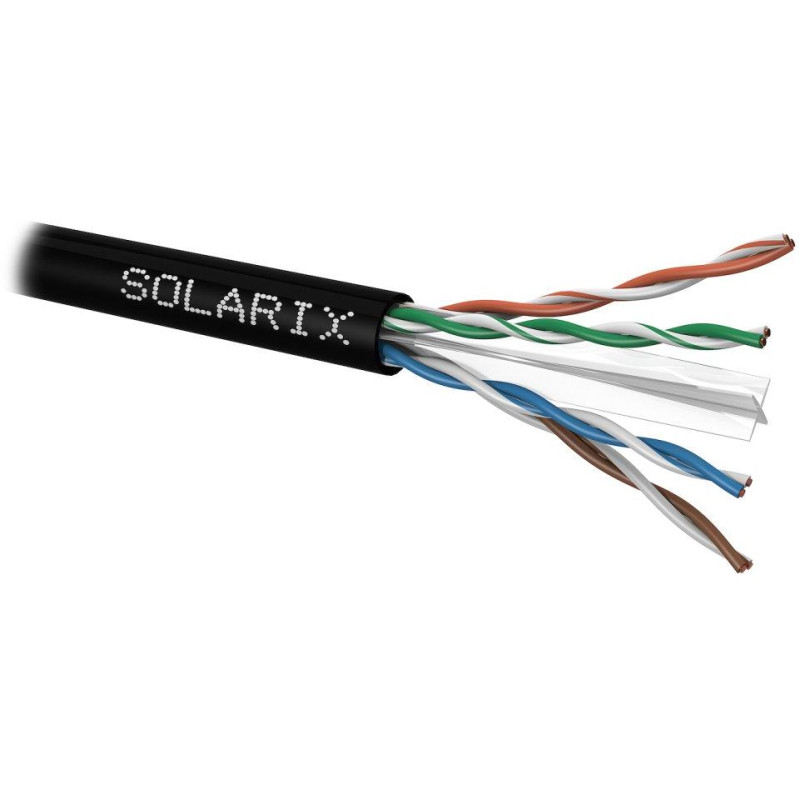

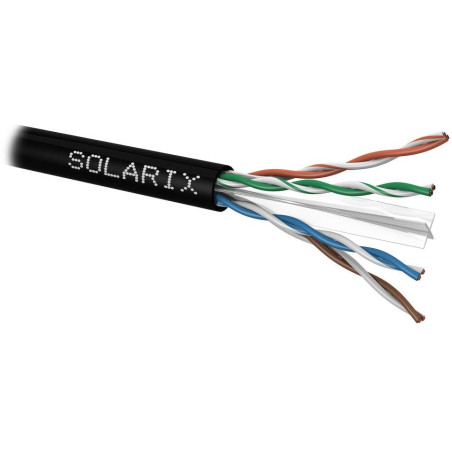

Reliable outdoor unshielded U/UTP cable of category Cat6 , which is designed for the operation of Ethernet protocols, including 2.5G Base-T and 5G Base-T. The cable construction is U/UTP with a plastic cross , which ensures maximum separation of pairs from each other along the entire length of the cable. The sheath type is UV stable PE with a fire reaction class Fca and a degree of protection IP67 . The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D . Like other Solarix cables, the SXKD-6-UTP-PE cable is marked with 1 m increments in the range from 0 to 500 m. The cable is supplied on a high-strength wooden spool, which contains all the necessary product information, including barcodes, production batch, description and the most important technical parameters. When installing in the ground, we always recommend using an HDPE conduit.

Technical parameters


Category: Cat6

Supported protocols: 2.5/5G Base-T and lower

Shielding: no

Bandwidth: 250MHz

Wire type and size: copper wire 0.55 mm ± 0.005 mm (AWG23)

Conductor material: copper (99.97% purity)

Insulation: polyethylene (HDPE) 0.98 mm

Sheath: PE (LLDPE) - linear low density polyethylene

Reaction to fire class: F _ca

Color: black (RAL 9005)

Cable diameter: 6.1 mm

Weight: 37.5 kg/km

NVP: 69%

Propagation delay: 535 ns/100m

Delay skew: ≤45 ns/100m

Storage temperature: -20 to +70 °C

Operating temperature: -20 to +70 °C

Installation temperature: 0 to +50 °C

Packaging: 500 m, wooden spool

BASIC SPECIFICATIONS

Category: Cat6

Shielding: no

Conductor type and size: copper wire 0.55 mm ± 0.005 mm

Insulation: polyethylene (HDPE) 0.98 mm

Sheath: PE
