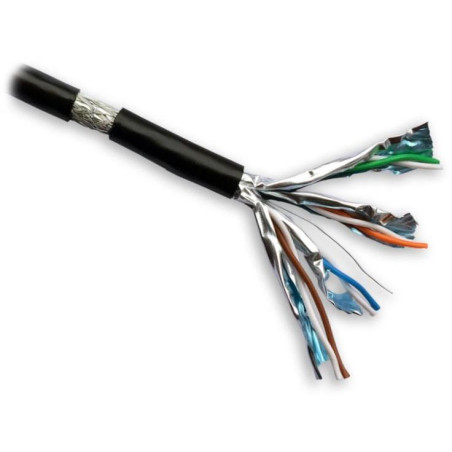

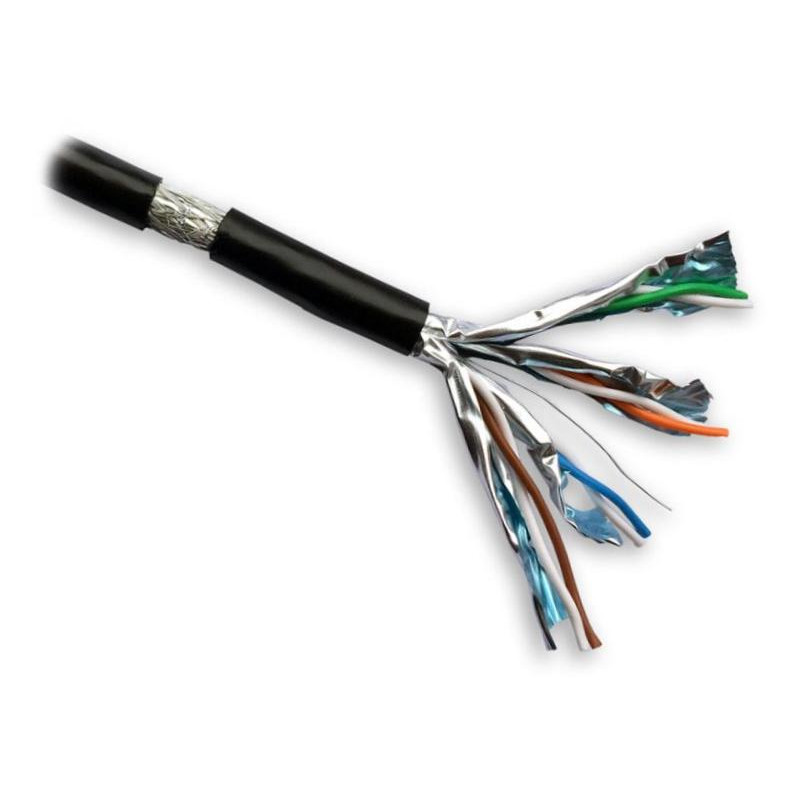

DATACOM S/FTP wire CAT7 PE,FCA 500m coil, black sheath OUTDOOR

DATACOM S/FTP Cat7 wire 500 m

Shielded installation cable of category Cat7 for structured cabling distribution. Thanks to the double design of the cable shielding and PE sheath, it is suitable for placement in more demanding outdoor environments .

Design:

•

• Outdoor

• Ambient operating temperature: -20 to +70 °C

• S/FTP

• Cat7

• 4x 2 pairs AWG23

• Individual pair shielding: yes

• Overall shielding: yes

• Conductor type: wire

• Conductor material: copper

• Insulation material of individual conductors: FMPE

• Ground wire: yes (1/0.4 mm)

• PE sheath

• Shell diameter 8.0 mm ± 0.05 mm

• Reaction to fire: Fca

• Shell color: black

• Shielding type S/FTP (overall braid, individual pairs of AL foils)

• Braid 8/7/0.12 mm Al&Mg

• 500 m wooden spool (27.5 kg)

• Coil dimensions: 430 x 430 x 340 mm

• The cable complies with international standards



BASIC SPECIFICATIONS

Category: Cat7

Shielding: yes, overall braid + individual pairs of AL foils

Material: copper

Sheath type: PE

Length: 500 m

Color: black
