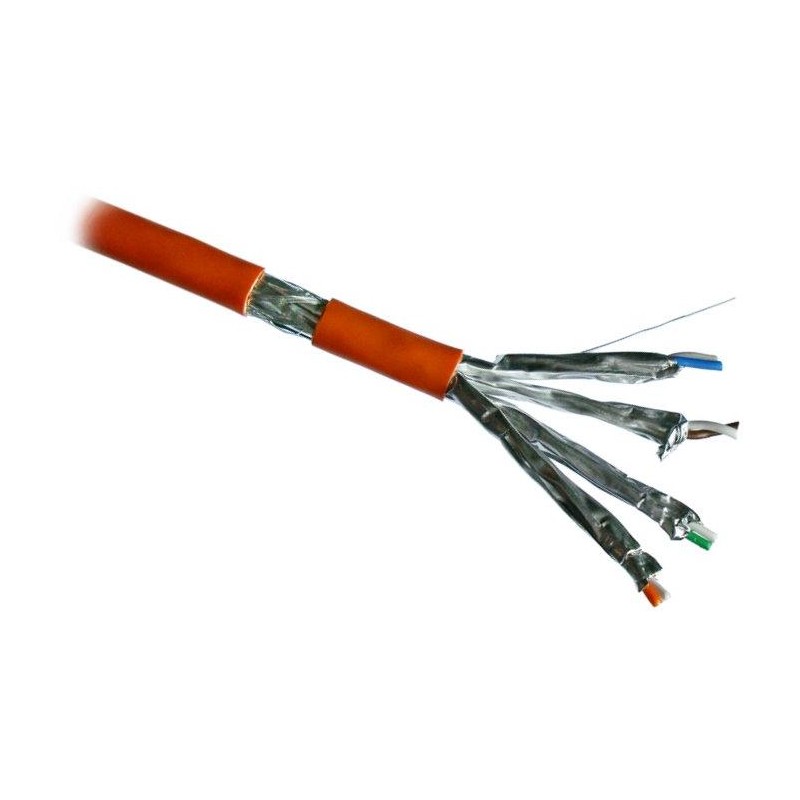

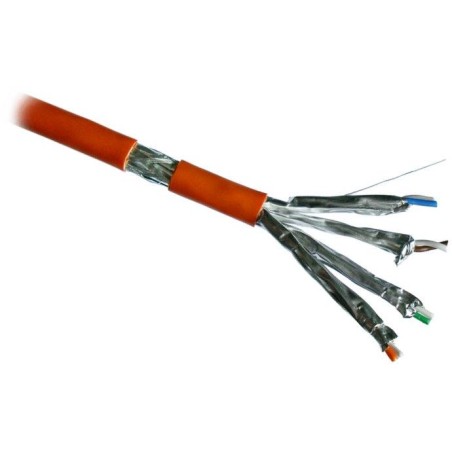

DATACOM S/FTP wire CAT7 LSOH Eca 500m coil, orange sheath

DATACOM S/FTP Cat7 wire 500 m

Shielded installation cable of category Cat7 for structured cabling distribution. Thanks to the double shielding of the cable, it is suitable for placement in more demanding indoor environments .

Design:

•

• FTP

• Cat7

• 4x 2 pairs AWG23

• Individual pair shielding: yes

• Overall shielding: yes

• Conductor type: wire

• Conductor material: copper

• Insulation material of individual conductors: FMPE

• Ground wire: yes (1/0.4 mm)

• LS0H casing

• Shell diameter 7.2 mm ± 0.05 mm

• Reaction to fire: Eca

• Shell color: orange

• Shielding type S/FTP (overall braid, individual pairs of AL foils)

• Braid 8/7/0.12 mm Al&Mg

• 500 m wooden spool

• Coil dimensions: 500 x 500 x 220 mm

• The cable complies with international standards



BASIC SPECIFICATIONS

Category: Cat7

Shielding: yes, overall braid + individual pairs of AL foils

Material: copper

Shell type: LS0H

Length: 500 m

Color: orange
