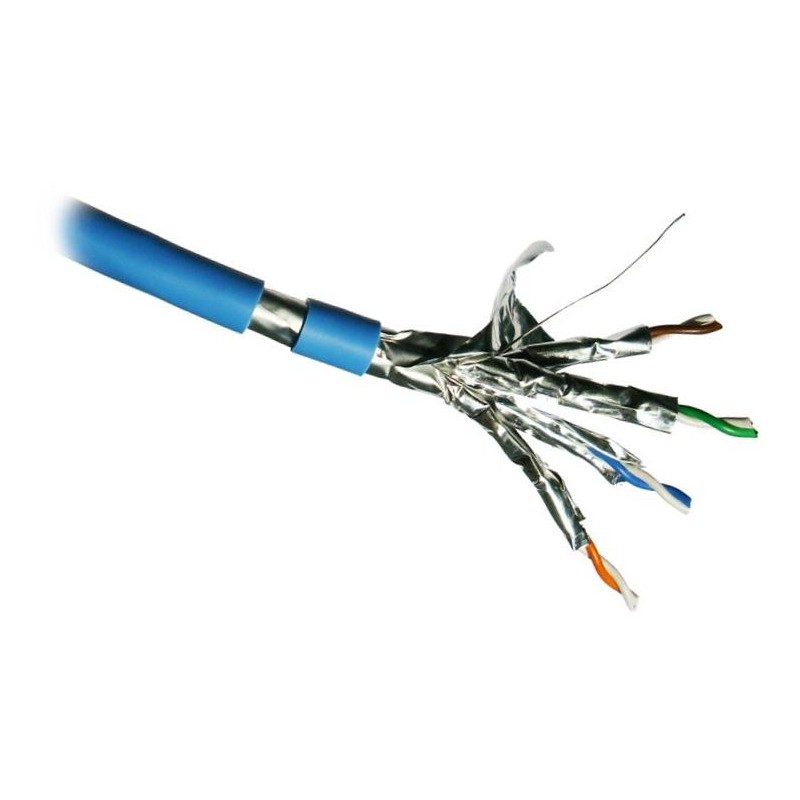

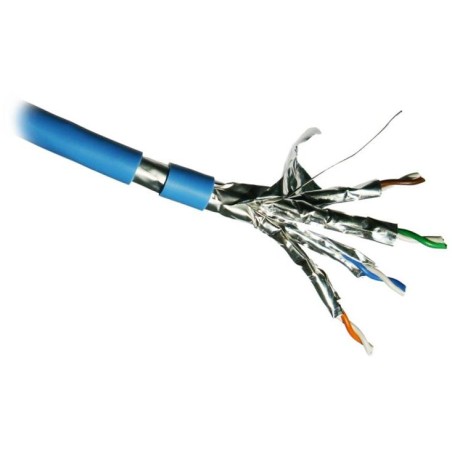

DATACOM F/FTP wire CAT6A LSOH Eca 500m coil, blue sheath

DATACOM F/FTP Cat6a wire 500 m

Shielded installation cable of category Cat6a for structured cabling distribution. Thanks to the double shielding of the cable, it is suitable for placement in more demanding indoor environments .

Design:

•

• F/FTP

• Cat6a (Class Ea)

• 4x 2 pairs AWG23/1

• Transmission speed: 10 GBit/s

• Supported protocol: 10G Base-T and below

• Transmission bandwidth: 500 MHz

• Individual pair shielding: yes

• Overall shielding: yes

• Conductor type: wire

• Conductor material: copper

• Insulation material of individual conductors: FMPE

• Ground wire: yes (1/0.4 mm)

• LS0H casing

• Shell diameter 8.0 mm ± 0.3 mm

• Reaction to fire: Eca

• Shell color: blue

• F/FTP shielding design (AL foil overall and individual pairs)

• 500 m wooden spool

• Coil dimensions: 500 x 500 x 220 mm

• The cable complies with international standards:


  •

  • IEC/ISO 61156-5

  • ANSI/TIA568C.2

  • ISO/IEC 11801




BASIC SPECIFICATIONS

Category: Cat6a

Shielding: yes, AL foil overall and individual pairs

Material: copper

Shell type: LS0H

Length: 500 m

Color: blue
