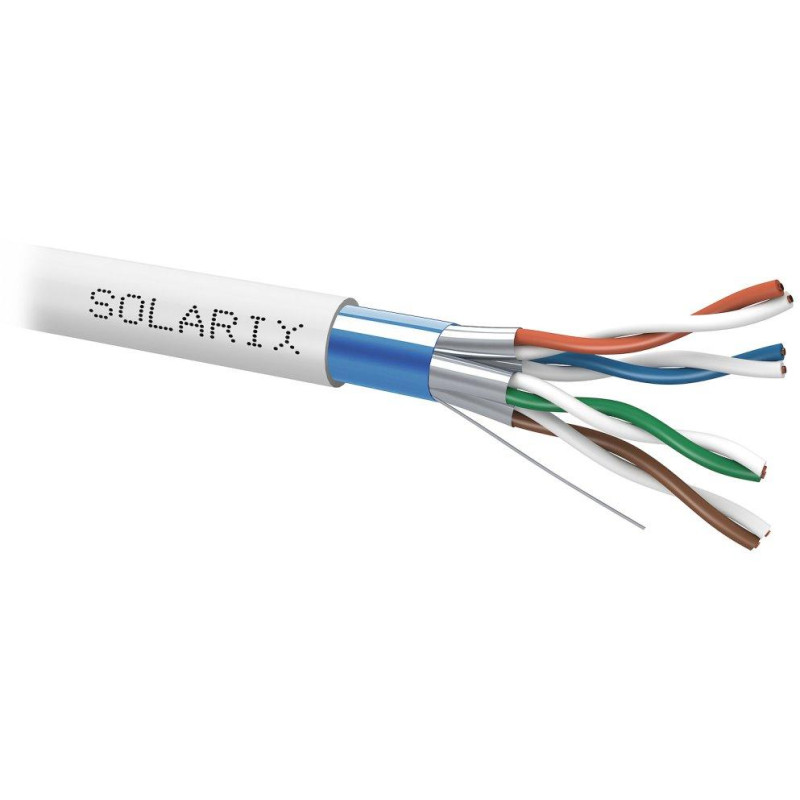

Solarix SXKD-6A-FFTP-LSOH
The "wire" type installation cable is a double-shielded Cat6A cable with an LSOH jacket. The cable is designed for operation of high-speed Ethernet protocols, including 10GBase-T .
The cable construction is F/FTP , sheath type LSOH with fire reaction class D ca -s2, d2, a1. The cable conductors are made of high-quality copper wire with a copper purity of 99.97% .
The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D . In the case of CPR (EU Regulation No. 305/2011), the cable is tested by the independent FORCE TECHNOLOGY laboratory in the AVCP 3 performance assessment system. Like other Solarix cables, the SXKD-6A-FFTP-LSOH cable is marked with meter lengths of 1 m in the range from 0 to 500 m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, production batch, description and the most important technical parameters.
Technical parameters
Category: Cat6A
Supported protocols: 10GBase-T and lower
Shielding: foil around all 4 pairs, foil around each pair, Al/Mylar
Bandwidth: 500 MHz (transmission bandwidth)
Conductor: copper wire ⌀ 0.56 mm (AWG23)
Grounding conductor: tinned copper wire ⌀ 0.45 mm
Insulation: PE (skin-foam-skin)
Casing: LSOH
Color: gray (RAL 7035)
Cable diameter: 7.5 mm
Weight: 54.1 kg/km
NVP: 75% (Nominal Velocity of Propagation - ratio of signal speed in the cable to the speed of light in %)
Signal delay: 480 ns/100 m
Differential delay: ≤ 45 ns/100 m
Storage temperature: -20 to +60 °C
Operating temperature: -20 to +60 °C
Installation temperature: 0 to +50 °C
Packaging: 500 m (wooden spool)
BASIC SPECIFICATIONS
Category: Cat6A
Shielding: yes
Conductor type and size: copper wire 0.56 mm ± 0.005 mm
Insulation: PE
Casing: LSOH
