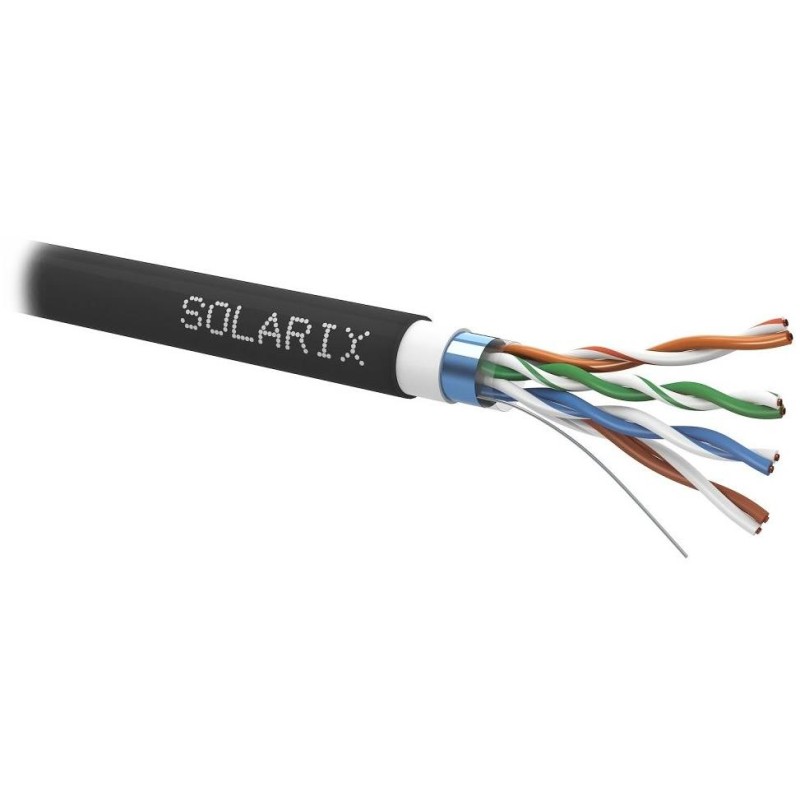

Solarix installation cable CAT5E FTP PVC+PE Fca double sheath 305m/reel

Solarix SXKD-5E-FTP-PVC+PE 305 m

Category 5E shielded installation cable with double jacket, designed for operation of Ethernet protocols, including 2.5GBASE-T and 5GBASE-T (depending on the type and quality of installation - mainly depending on the influence of the so-called Alien CrossTalk). The cable construction is F/UTP , the sheath type is PVC (inner sheath) and UV stable PE (outer sheath) with a fire reaction class of Fca . The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D. The cable is designed for more demanding installations, where the double PVC+PE sheath with a total thickness of 1.1 mm provides high protection against environmental influences.

BASIC SPECIFICATIONS

Category: Cat5e

Shielding: yes, foil around all 4 pairs

Material: copper

Sheath type: PVC+PE

Conductor type and size: copper wire 0.5 mm ± 0.005 mm

Insulation and conductor diameter with insulation: HDPE 1.0 mm

Length: 305 m

Color: black (RAL 9005)
