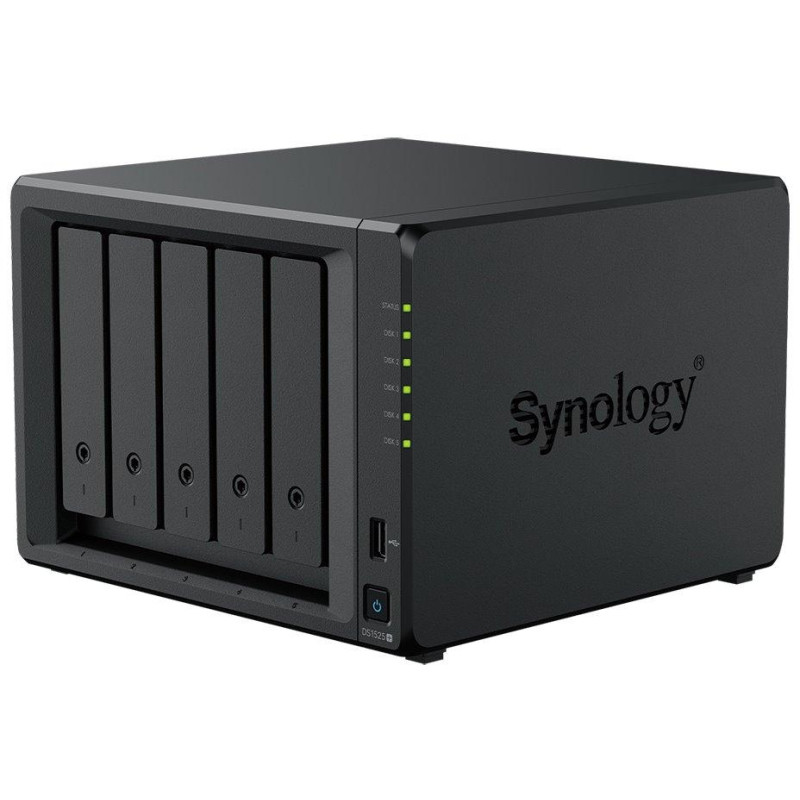

Synology DS1525+ 5x SATA, 8GB RAM, 2x M.2, 2x USB3.2, 2x 2.5GbE, 1x PCIe, 1x USB-C

Powerful 5-disk NAS server with AMD Ryzen processor for small and medium businesses.

Synology DiskStation DS1525+ is an advanced network storage server designed for demanding business environments. It is equipped with a quad-core AMD Ryzen V1500B processor with a frequency of 2.2 GHz and 8 GB DDR4 ECC memory , ensuring high data reliability. The server supports up to 5 SATA drives in the standard configuration and can be expanded to up to 15 drives with two DX525 expansion units.

With dual 2.5GbE LAN ports and support for M.2 NVMe SSD cache, it delivers exceptional data transfer performance. Built-in hardware encryption and advanced RAID configurations including Synology Hybrid RAID ensure maximum security and flexibility in storage management.

Advanced storage management
The server supports a maximum volume size of up to 200TB (with 32GB of memory) and allows the creation of up to 32 internal volumes. SSD TRIM technology and M.2 SSD Storage Pool support optimize performance for demanding applications.

Network connectivity and expansion
In addition to two 2.5GbE ports, it offers two USB 3.2 Gen1 ports and two USB-C expansion ports. The PCIe Gen3 slot allows the installation of a 10GbE network card E10G22-T1-Mini for even higher throughput.

Virtualization and enterprise features
DS1525+ is certified for VMware vSphere, Microsoft Hyper-V, and Citrix XenServer. It supports up to 40 concurrent SMB connections, Synology High Availability, and advanced Hyper Backup features.

BASIC SPECIFICATIONS

Processor: AMD Ryzen V1500B (4 cores, 2.2 GHz, 64bit)/>
Memory: 8GB DDR4 ECC SODIMM (max. 32GB)

Disk bays: 5× 2.5"/3.5" SATA HDD/SSD

M.2 slots: 2× NVMe 2280

Network: 2× 2.5GbE LAN

Expansion: 1× PCIe Gen3 slot, 2× USB 3.2 Gen1, 2× USB-C expansion port

Consumption: 44.56 W (operation), 13.63 W (hibernation)

Dimensions: 230 × 223 × 166 mm

Weight: 2.67 kg

Noise level: 22.6 dB(A)
