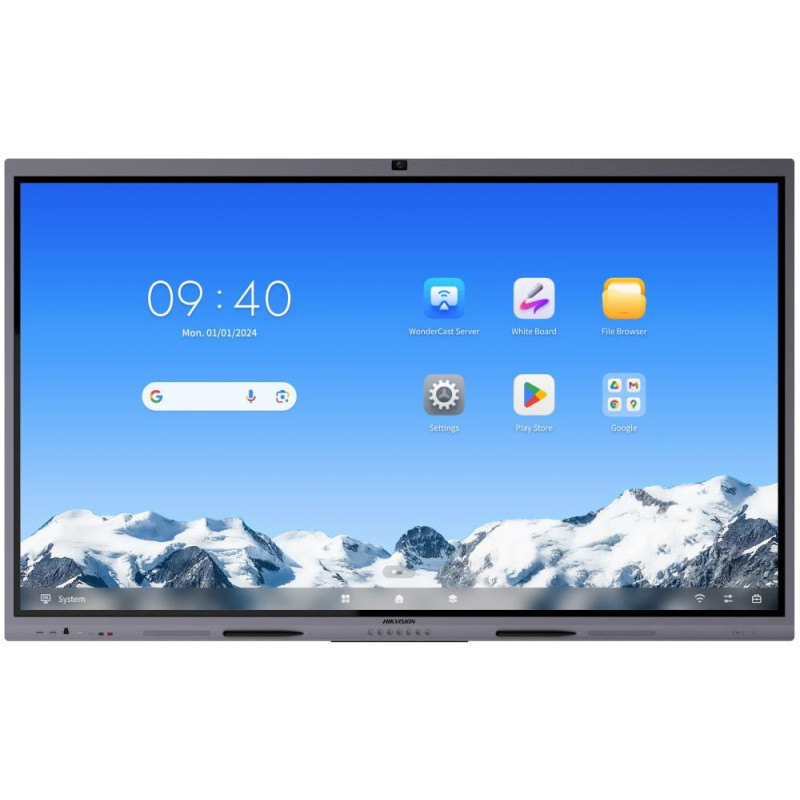

HIKVISION interactive touch panel 86", 4K, Android 14, 8GB,128G,480nit,50 points, USB, HDMI, Wifi, BT, camera, EDLA

Professional 86" interactive panel for modern education and video conferencing with advanced technologies.

Introducing a comprehensive solution for interactive learning and corporate presentations with an 86-inch UHD 4K display with a resolution of 3840 × 2160 px . The panel uses VA technology with a brightness of 480 cd/m2 , a contrast ratio of 5000:1 and viewing angles of 178°/178° . Anti-reflective glass with a hardness of 9H (Pencil) and 7 (Mohs) ensures scratch resistance and comfortable work even in strong lighting.

The device is equipped with infrared touch technology supporting up to 50-point simultaneous touch with a response time of ≤ 2 ms and an accuracy of ± 0.5 mm . The integrated octa-core processor (4× Cortex-A76 2.4 GHz + 4× Cortex-A55 1.8 GHz) with Mali-G610 MC4 graphics, 8 GB RAM and 128 GB storage provide smooth performance for demanding applications. The panel runs on Android 14.0 with EDLA certification and supports an optional OPS module for dual-system operation with Windows.

Advanced image and sound processing
The panel features advanced image processing technologies including 3D digital noise reduction, face detection, automatic white balance, purple fringing removal and automatic defog. The audio system uses dereverberation, adaptive noise reduction, automatic echo cancellation, sound source localization and digital beamforming for optimal sound quality during video conferencing.

Flexible connectivity and expandability
The device offers extensive connectivity with three HDMI 2.0 inputs (supporting HDCP 2.3/2.0/1.4), one HDMI output, VGA input and audio inputs/outputs including SPDIF. Three USB interfaces (1× USB 3.0, 2× USB 2.0) are available for touch control. Data can be transferred via four USB 3.0 ports, one USB 2.0 port and two Type-C ports with USB 2.0 support, 100W charging and DP IN 1.2. Two gigabit LAN ports with built-in switch eliminate the need for an external network switch.

Professional control and integration
The panel features a multi-button design on the front for easy operation in the classroom, including buttons for power, volume, Android menu, return, control menu and PC shutdown. The RS232 interface allows for professional integration into control systems. The device supports 7×16 hours per day working mode with a backlight life of 50,000 hours.

BASIC SPECIFICATIONS

Display: 86" VA panel, 3840 × 2160 px at 60 Hz, brightness 480 cd/m2, contrast 5000:1 (static), 30,000:1 (dynamic)

Touch: infrared technology, up to 50-point simultaneous touch, response ≤ 2 ms, accuracy ± 0.5 mm

Processor: Quad-core Cortex-A76 × 4 (2.4 GHz) + Quad-core Cortex-A55 × 4 (1.8 GHz)

Memory: 8GB RAM, 128GB internal storage

Graphics: Mali-G610 MC4

Operating system: Android 14.0, EDLA certified

Camera: 48 Mpx for photos, 8 Mpx for video, 93.4° field of view (diagonal), up to 4K resolution

Microphones: omnidirectional 8-microphone array, range 12 m, sampling frequency 32 kHz, 16 bit

Speakers: built-in 2 × 20 W + 25 W

Connectivity: HDMI 2.0 × 3 (input), HDMI 2.0 × 1 (output), VGA × 1, USB 3.0 × 4, USB 2.0 × 1, Type-C × 2

Network: LAN 1000 Mbps × 2, Wi-Fi 6 (802.11ax) 2 × 2 MIMO, Bluetooth 5.4

Other interfaces: RS232, NFC (13.56 MHz), audio input/output, SPDIF

Power: 100-240 VAC, 50/60 Hz, average consumption < 274 W, standby ≤ 0.5 W

Operating conditions: temperature 0 to +40 °C, humidity 10–90% RH

VESA: 800 x 600mm (4 x M8-25mm)

Dimensions with holder: 1960.4 × 1173.7 × 114.5 mm

Dimensions without bracket: 1960.4 × 1173.7 × 82.5 mm

Weight: 58.9 ± 0.5 kg
