HIKVISION interactive touch panel 65", 4K, Android 14, 8GB,128G,480nit,50 points, USB, HDMI, Wifi, BT, camera, EDLA

Professional interactive display for modern education and video conferencing with integrated artificial intelligence technologies.

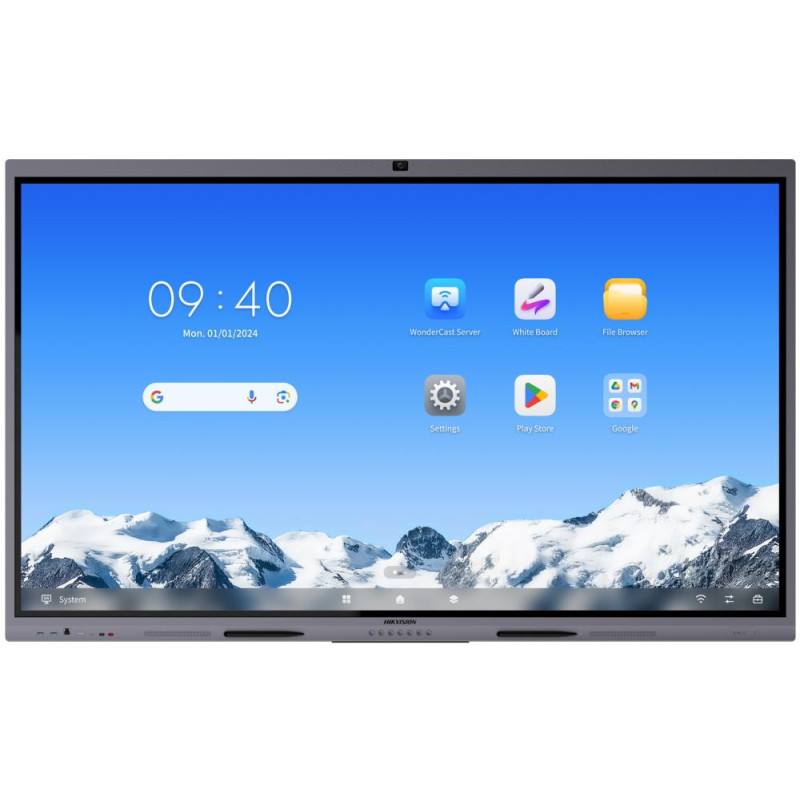

Introducing an advanced 65" interactive display with a 4K UHD resolution (3840 × 2160 px) , which combines the latest touch control technologies, HD display, video processing and network communication. The display is equipped with an infrared touch panel with support for up to 50 simultaneous touch points and a response time of ≤ 2 ms for smooth and precise control.

The device integrates dual Android 14.0 (EDLA certified) with the ability to connect an optional OPS module with Windows, providing maximum flexibility for various applications. The built-in 8-core processor (4× Cortex-A76 2.4 GHz + 4× Cortex-A55 1.8 GHz) with Mali-G610 MC4 graphics, 8 GB RAM and 128 GB storage ensure smooth operation of even demanding applications. The display is ideal for classrooms, online learning, training centers and conference rooms.

Advanced audio and video processing
The display uses AI technology to optimize both image and sound. Image processing includes 3D digital noise reduction, face detection, automatic white balance, purple fringing removal, and shadow correction. The audio system supports dereverberation, adaptive noise reduction, echo cancellation, automatic gain control, sound source localization, and digital beamforming.rming.

Flexible system configuration
Android 14.0 system with EDLA certification provides access to the full ecosystem of Google applications. Optional OPS module allows parallel operation of Windows system for video conferencing software. Built-in network switch eliminates the need for external network device. Support for HDCP 2.3, 2.0 and 1.4 ensures compatibility with protected content.

Ergonomics and control
The front panel contains multi-function buttons for easy control in the classroom: power on, volume +/-, Android menu, return, settings menu and PC shutdown. Remote control is included in the package. NFC area allows contactless access using 13.56 MHz cards (ISO 14443A/B, ISO 15693). The display is designed for 7 × 16 hours a day operation with a lifespan of 50,000 hours.

BASIC SPECIFICATIONS

Display diagonal: 65"

Resolution: 3840 × 2160 px (4K UHD) at 60 Hz

Panel type: VA, DLED backlight, brightness 480 cd/m2, contrast 5000:1

Touch panel: infrared, up to 50 points, response time ≤ 2 ms, accuracy ± 0.5 mm

Operating system: Android 14.0 (EDLA certified)

Processor: 4x Cortex-A76 (2.4 GHz) + 4x Cortex-A55 (1.8 GHz)

Memory: 8GB RAM, 128GB storage

Camera: 48 Mpx photo / 8 Mpx video, 93.4° field of view (diagonal)

Microphones: 8-microphone array, 12 m range, 32 kHz sampling rate

Speakers: 2 x 20 W + 25 W

Connectivity: 3× HDMI 2.0, VGA, 6× USB, 2× USB-C (DP IN, 100 W), 2× LAN, Wi-Fi 6, Bluetooth 5.4, NFC

Power: 100-240 VAC, 50/60 Hz, consumption < 184 W, standby ≤ 0.5 W

Dimensions (with holder): 1491.9 × 910.6 × 115.3 mm

Weight: 34.7 ± 0.5 kg

VESA: 600 x 400mm (4 x M8-25mm)

Operating temperature: 0 to +40 °C, humidity 10–90% RH
