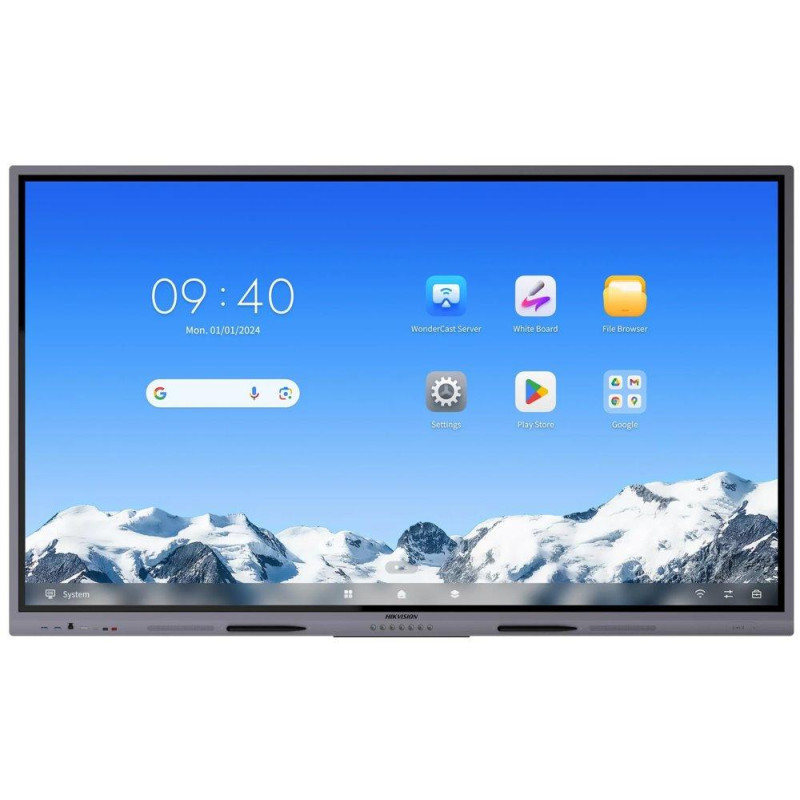

HIKVISION interactive touch panel 75", 4K, Android 14, 8GB,128G,480nit,50 points, USB, HDMI, Wifi,BT EDLA

Professional interactive touch panel for education and corporate presentations with advanced touch technology and dual system.

The Hikvision interactive flat panel is a modern solution for classrooms, training centers and conference rooms. It combines a 75" UHD 4K display with a resolution of 3840 × 2160 px with advanced infrared touch technology supporting up to 50 simultaneous touch points . The panel is equipped with a built-in Android 14.0 system with EDLA certification and allows optional expansion with Windows via the OPS module.

The device features a VA panel with a brightness of 480 cd/m2 , a high contrast ratio of 5000:1 and wide viewing angles of 178°/178° . Anti-reflective glass with a hardness of 9H (pencil scale) and 7 (Mohs scale) ensures scratch resistance. The touch system offers a response time of ≤ 2 ms and an accuracy of ± 0.5 mm on 90% of the touch area.

Advanced touch technology
The infrared touch system ensures an ultra-fast response time of less than 2ms and supports a minimum touch object of ≥ 1.5mm. Zero Lamination technology minimizes the air gap between the glass and the panel for a better visual experience and smooth typing.

Dual system solution
Built-in Android 14.0 with 8GB RAM provides a powerful standalone system for applications and presentations. The panel can be expanded with an optional OPS module with Windows system, allowing flexible switching between the two platforms. Windows system is recommended for video conferencing.

Professional connectivity
The panel offers extensive connectivity options including 3× HDMI 2.0 inputs with HDCP 2.3/2.0/1.4 support, 2× USB-C ports with DisplayPort 1.2 and 100W charging function. Built-in network switch with 2× Gigabitt LAN ports eliminate the need for an external switch. Wi-Fi 6 with 2×2 MIMO supports both 2.4 GHz and 5 GHz bands.

Smart features
The device includes an NFC reader for 13.56 MHz contactless cards (ISO 14443A/B, ISO 15693), an ambient light sensor for automatic brightness control, and temperature/humidity sensors for environmental monitoring. Intelligent temperature control ensures safe and environmentally friendly operation.

BASIC SPECIFICATIONS

Display: 75" VA panel, 3840 × 2160 px at 60 Hz

Brightness: 480 cd/m2 (typical)

Contrast ratio: 5000:1 (static), 30,000:1 (dynamic)

Color Gamut: 72% NTSC (CIE1931)

Response time: 5ms

Viewing angles: 178° (H) / 178° (V)

Touch system: infrared, up to 50 points, response time ≤ 2 ms

Processor: 4x Cortex-A76 (2.4 GHz) + 4x Cortex-A55 (1.8 GHz)

Operating system: Android 14.0, EDLA certification

Memory: 8GB RAM, 128GB internal storage

Connectivity: Wi-Fi 6 (802.11ax), Bluetooth 5.4, 2× LAN 1000 Mbps

Interface: 3x HDMI 2.0, 2x USB-C (DP 1.2, 100W), 4x USB 3.0, VGA, RS232

Audio: 2 x 20 W + 25 W speakers

Power supply: 100-240 VAC, 50/60 Hz, average power consumption < 237 W

Operating temperature: 0 to +40 °C

Dimensions with holder: 1713.2 × 1019.0 × 114.5 mm

Weight: 45.4 ± 0.5 kg

VESA: 800 x 400mm (4 x M8-25mm)
