IMMAX NEO Smart thermostatic head 4 pcs + MULTI BRIDGE PRO v3
The programmable thermostatic radiator valve allows for comfortable and energy-saving heating control from anywhere in the world using the IMMAX NEO PRO mobile application on the TUYA platform. Of course, there is also the option of local control using the buttons on the valve body. The thermostat offers a weekly program, with the option to choose between 5+2, 6+1 and 7 days x 6 temperature and time modes, special functions such as holiday mode or open window function , and also a lock function that limits control directly from the valve (suitable as a child lock or for rental properties). The programmed time functions are stored in the valve and work even in the event of an internet outage .
Smart Bridge Pro v3 is the heart of the Immax NEO smart system, communicating via 2.4 GHz Wi-Fi technology and ZigBee 3.0 protocol. The device is designed to connect all smart devices into one controllable unit. You can control all available functions of your smart lighting, security elements, cameras and more. The security logic function makes your home an impenetrable fortress.

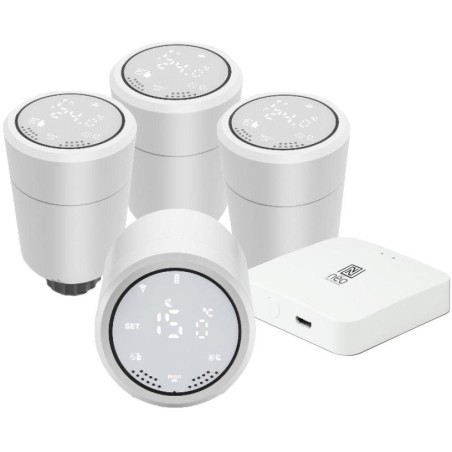

The set includes 4× thermostatic heads and 1× SMART MULTI BRIDGE PRO v3.
Notice:
All Zigbee devices require NEO BRIDGE PRO Smart Zigbee 3.0 v3 to control.
The thermostatic head does not control the boiler.
BASIC SPECIFICATIONS
SMART thermostatic head
Compatible with valves: RA, RAV, RAVL
Valve size: M30×1.5
Power supply: 3 V (2 x 1.5 V / AA)
Accuracy: ± 1°C
Adjustable temperature range: 5 °C to 35 °C
Temperature settings in increments of: 0.5 °C
Thermostat dimensions: 89.5 × 53 × 53 mm
SMART MULTI BRIDGE PRO v3
Interface: Zigbee 3.0, Wi-Fi, Bluetooth 5.0
Frequency: 2400–2483.5 MHz
Maximum RF output power: 11 dBm
Power supply: micro USB, 5 V/ 1 A (adapter not included)
Power supply input voltage: AC 230 V (50-60 Hz)
Application language: Czech
Dimensions: 60 × 60 × 15 mm
Color: white
TuyaSmart:
Android app
iOS app
