IMMAX NEO SMART Thermostatic head Zigbee, TUYA

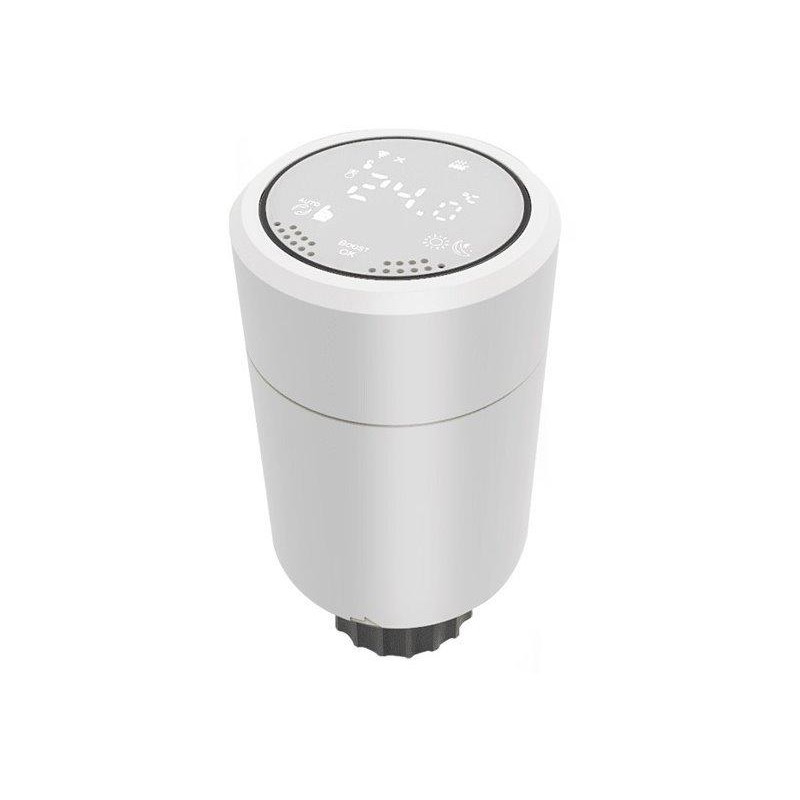

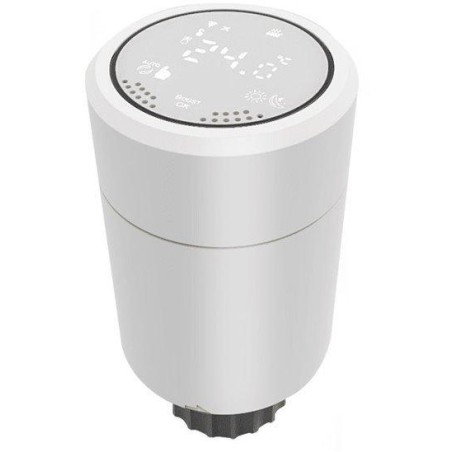

IMMAX NEO Smart thermostatic head

The programmable thermostatic radiator valve allows for comfortable and energy-saving heating control from anywhere in the world using the IMMAX NEO PRO mobile application on the TUAY platform. Of course, there is also the option of local control using the buttons on the valve body. The thermostat offers a weekly program, with the option to choose between 5+2, 6+1 and 7 days x 6 temperature and time modes, special functions such as holiday mode or open window function , and also a lock function that limits control directly from the valve (suitable as a child lock or for rental properties). The programmed time functions are stored in the valve and work even in the event of an internet outage .

Notice:

All Zigbee devices require NEO BRIDGE PRO Smart Zigbee 3.0 v2 to control.

The thermostatic head does not control the boiler.

BASIC SPECIFICATIONS

Compatible with valves: RA, RAV, RAVL

Valve size: M30×1.5

Power supply: 3 V (2 x 1.5 V / AA)

Accuracy: ± 1°C

Adjustable temperature range: 5 °C to 35 °C

Temperature settings in increments of: 0.5 °C

Thermostat dimensions: 89.5 × 53 mm

TuyaSmart:



Android app

iOS app
