IMMAX NEO Smart thermostatic head 2 pcs + SMART BRIDGE PRO v2
The programmable thermostatic radiator valve allows for comfortable and energy-saving heating control from anywhere in the world using the IMMAX NEO PRO mobile application on the TUYA platform. Of course, there is also the option of local control using the buttons on the valve body. The thermostat offers a weekly program, with the option to choose between 5+2, 6+1 and 7 days x 6 temperature and time modes, special functions such as holiday mode or open window function , and also a lock function that limits control directly from the valve (suitable as a child lock or for rental properties). The programmed time functions are stored in the valve and work even in the event of an internet outage .
The Smart Bridge Pro is the heart of the Immax NEO smart system, communicating via 2.4 GHz Wi-Fi technology and the ZigBee 3.0 protocol, which is compatible with iOS, Android, Amazon Alexa, Google Assistant, Philips HUE . With this device, you can control all available functions of your smart lighting, such as variable light intensity, thermal coloration or setting timed lighting modes in different parts of the home.

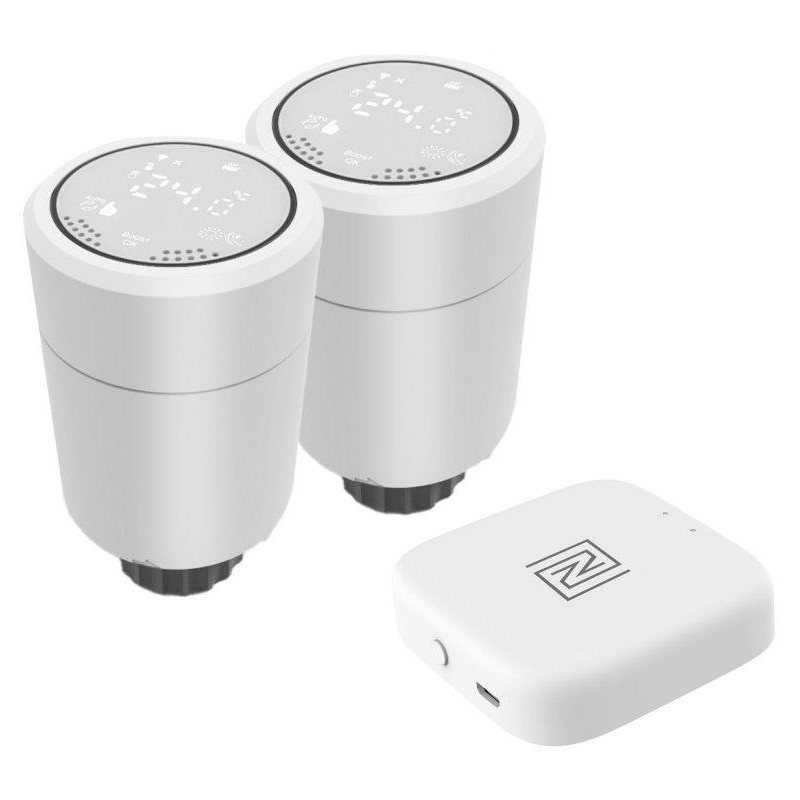

The set includes 2x thermostatic heads and 1x smart BRIDGE PRO v2.
Notice:
All Zigbee devices require NEO BRIDGE PRO Smart Zigbee 3.0 v2 to control.
The thermostatic head does not control the boiler.
BASIC SPECIFICATIONS
SMART thermostatic head
Compatible with valves: RA, RAV, RAVL
Valve size: M30×1.5
Power supply: 3 V (2 x 1.5 V / AA)
Accuracy: ± 1°C
Adjustable temperature range: 5 °C to 35 °C
Temperature setting in steps of: 0.5 °C
Thermostat dimensions: 89.5 × 53 mm
SMART BRIDGE PRO v2
Interface: Zigbee 3.0, Wi-Fi
Frequency: 2400–2483.5 MHz
Maximum RF output power: 10-19 dBm (Wi-Fi 20 dBm)
Power supply: AC 230V (50-60Hz)
Power consumption: 4.2 W
Application language: Czech
Dimensions: 60.5 × 60.5 × 16.1 mm
Color: white
TuyaSmart:
Android app
iOS app
