PremiumCord 4K HDMI extender up to 60m over a single Cat5e/Cat6 cable

PremiumCord HDMI 4K extender

With this extender, you can easily transmit an HDMI signal in 4K resolution at 30 Hz over a distance of up to 60 m . The converter (transmitter) converts the standard HDMI signal to a network LAN and uses a CAT5e, CAT6 or CAT7 cable to transmit it to the destination, where it is converted back to HDMI. The maximum data rate of 3× 3.4 Gbps ensures stable transmission. Both converters are powered by power adapters (included).

Features:

•

• HDMI signal transmission 4K at 30 Hz over a distance of up to 60 m

• transfer speed up to 3× 3.4 Gbps

• HDCP support

• bandwidth 340 MHz

• supports video color formats: deep color 24bit, 30bit, 36bit, 48bit

• EDID button to switch resolution from Full HD 1080p to 4K at 30 Hz and vice versa


Note: for distances of 60 m, use copper cable with AWG23 conductors. With AWG26, the HDMI cable can be up to 10 m long.

BASIC SPECIFICATIONS

Transmission technology: HDMI, HDCP

Maximum transmission distance: up to 60 m

Supported resolutions: 4K at 30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

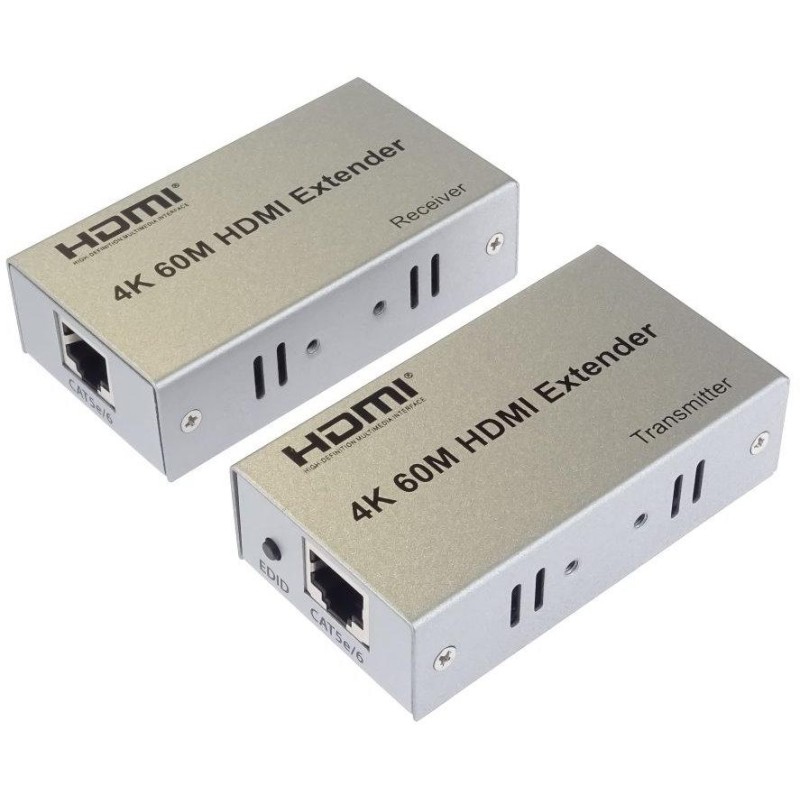

Transmitter:

Connectors: 1× RJ-45 output, 1× HDMI input, 1× power connector

Dimensions: 81 × 47 × 22 mm

Weight: 102g

Receiver:

Connectors: 1× RJ-45 input, 1× HDMI output, 1× power connector

Dimensions: 81 × 47 × 22 mm

Weight: 103g
