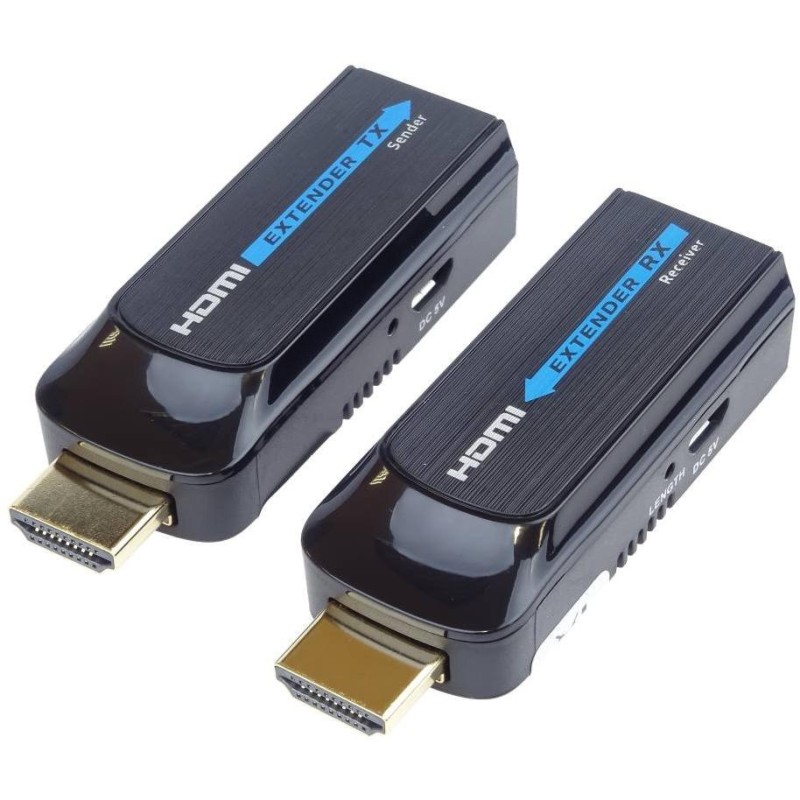

PremiumCord HDMI Full HD extender
With this extender, you can easily transmit an HDMI signal in 1080p resolution at 50/60 Hz over a distance of up to 50 m . The converter (transmitter) converts the standard HDMI signal to a network LAN and uses a CAT6/6a/7 cable to transmit it to the destination, where it is converted back to HDMI. The maximum data rate of 10.2 Gbps ensures stable transmission. The converters are powered using a micro USB connector (micro USB to USB cable is included in the package). It also supports PoE power supply, so only one unit must be connected to USB power, the second unit is powered from the first via a UTP cable.
Note: The extender must not be connected to a computer LAN, switch, router or other active network device. The transmitter and receiver must be directly connected by a LAN cable, preferably without interruption.
Features:
- HDMI 1.3 signal transmission
- 1080p transmission at 50/60 Hz over a distance of up to 50 m
- transfer speed up to 10.2 Gbps
- HDCP 1.3 support
- Both the transmitter and receiver have a Reset button
- transmits digital images and sound
- supports PoE power supply
BASIC SPECIFICATIONS
Transmission technology: HDMI 1.3, HDCP 1.3
Maximum transmission distance: up to 50 m
Supported resolutions: 1080p @ 50/60 Hz, 1080i @ 50/60 Hz, 720p @ 50/60 Hz, 576p @ 50 Hz, 576i @ 50 Hz, 480p @ 60 Hz, 480i @ 60 Hz
Color: black
Transmitter:
Connectors: 1× RJ-45 output, 1× HDMI input, 1× micro USB (for power)
Dimensions: 71.35 x 25.9 x 11.05 mm
Weight: 10g
Receiver:
Connectors: 1× RJ-45 input, 1× HDMI output, 1× micro USB (for power)
Dimensions: 71.35 x 25.9 x 11.05 mm
Weight: 10g
