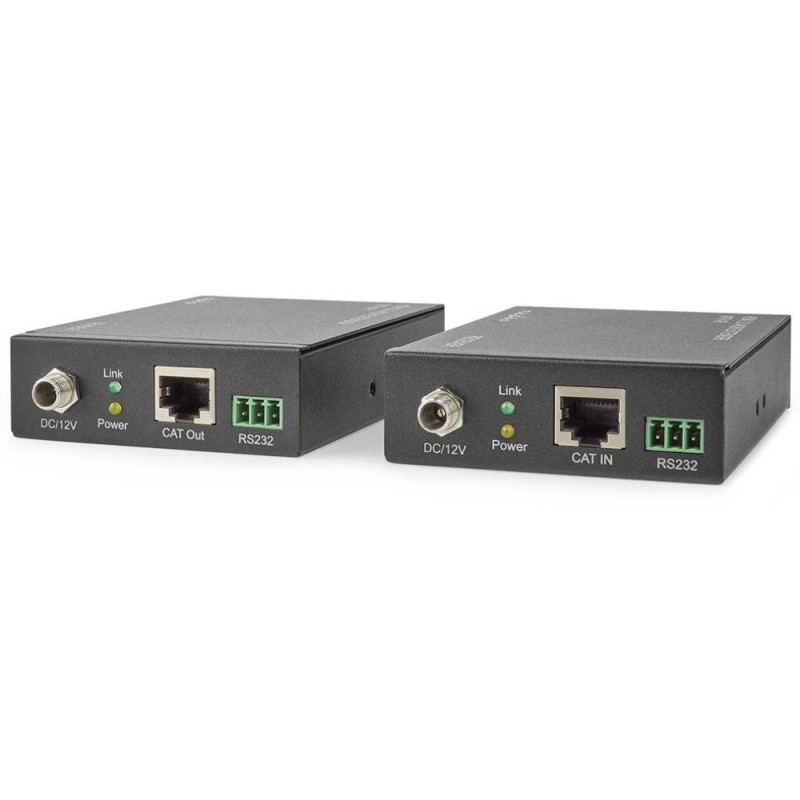

Nedis HDMI extender
With this extender, you can easily transmit an HDMI signal in 4K resolution at 60 Hz over a distance of up to 60 m . The converter (transmitter) converts the standard HDMI signal to a network LAN and uses a CAT6/6a/7 cable to transmit it to the destination, where it is converted back to HDMI. The maximum data rate of 18 Gbps ensures stable transmission. The transmitter and receiver are equipped with two pairs of infrared connectors, which allow bidirectional use of the remote control. Both converters are powered by power adapters (included).
Features:
- HDMI 2.0 signal transmission
- 4K transmission at 60 Hz over a distance of up to 60 m
- transfer speed up to 18 Gbps
- HDCP 2.2 support
- LPCM, DTS Digital, DTS-HD, Dolby True HD audio support
- HDMI output (Loop Out) on the transmitter
- RJ-45 output on the receiver for connecting additional receivers to the loop (max. 8)
- two pairs of infrared connectors for two-way remote control of the transmitter and receiver
BASIC SPECIFICATIONS
Transmission technology: HDMI 2.0, HDCP 2.2
Maximum transmission distance: up to 60 m
Supported resolutions: 4K at 60/30 Hz, 2K at 60 Hz, 1080p/i, 720p, 576p/i, 480p/i
Transmitter:
Connectors: 1x RJ-45 output, 1x HDMI input, 1x HDMI output, 1x IR 3.5 mm jack input, 1x IR 3.5 mm jack output, 1x RS-232 (3-pin) input, 1x power connector
Dimensions: 110 x 75 x 25 mm
Color: black
Receiver:
Connectors: 1x RJ-45 input, 1x RJ-45 output, 1x HDMI output, 1x IR 3.5 mm jack input, 1x IR 3.5 mm jack output, 1x RS-232 (3-pin) input, 1x power connector
Dimensions: 110 x 75 x 25 mm
Color: black
