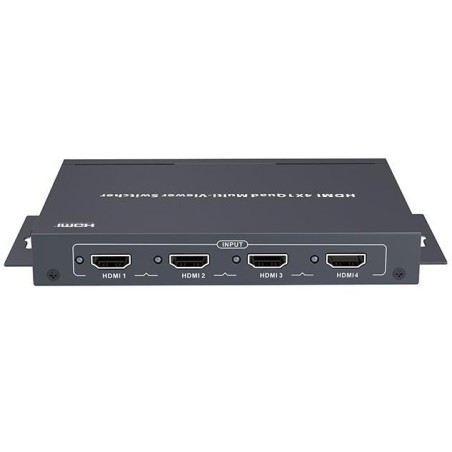

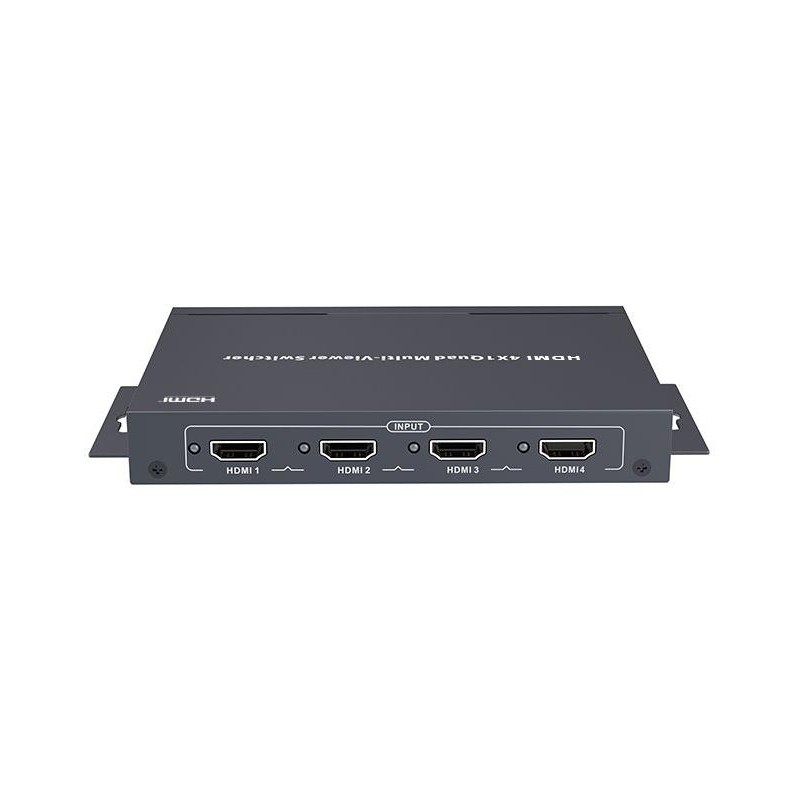

XtendLan HDMI multiviewer/squarer, 4x input, 1x output, up to 1080p, IR remote control

XtendLan HDMI-MS401

HDMI switch (multiviewer/squadrator) from four inputs to one output, display of all inputs on one HDMI output . Resolution up to 1080p , remote control, HDCP 1.3a support, DC 12 V power supply.

Display modes:

•

• Quadrature


• PIP (picture-in-picture)


• Full screen



Features:

•

• 4x HDMI (type A) inputs controlled by switch or IR remote control


• 1x HDMI (type A) output


• Display modes: 2x2 quadrature, full screen (i.e. selection of one of the inputs), full screen + 3x PIP


• Automatic input switching in full screen mode (auto switch)


• Resolution support (inputs and outputs) 480i, 480p, 576i, 720p, 1080i, 1080p - 24/50/60Hz


• Supports DTS-HD, Dolby True HD, LPCM 7.2 audio transmission


• HDMI 1.3a with support for 3D content transmission, HDCP support


• Built-in detection of connected inputs


• Front panel or remote control control


• Metal design + wall mounting option



BASIC SPECIFICATIONS

Ports: 4 x HDMI input, 1 x HDMI output

Dimensions: 179 x 105 x 21 mm

Weight: 340g

Power supply: 12 V/2 A power adapter, power consumption up to 10 W
