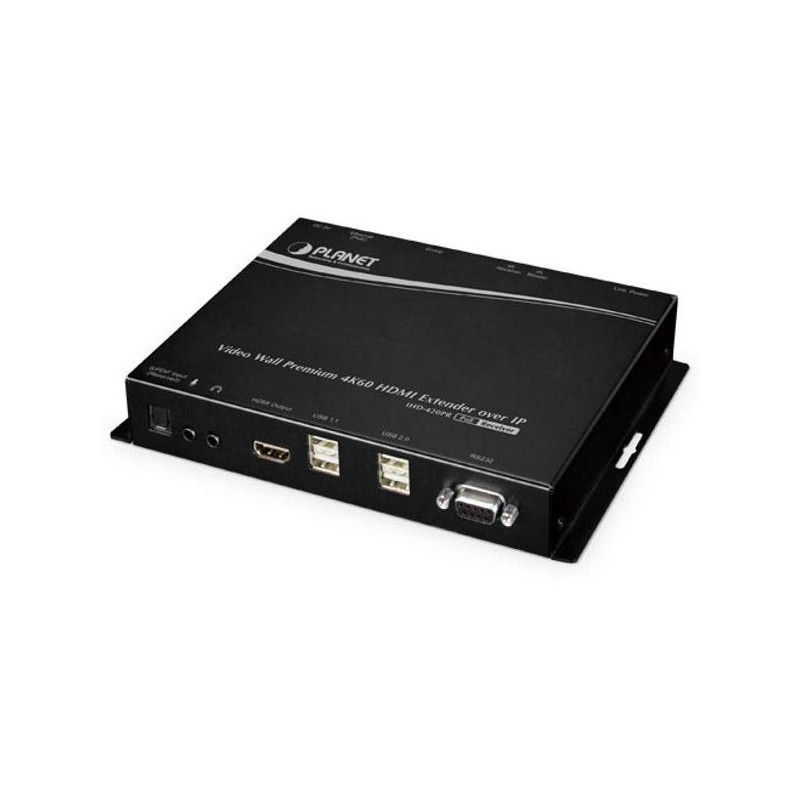

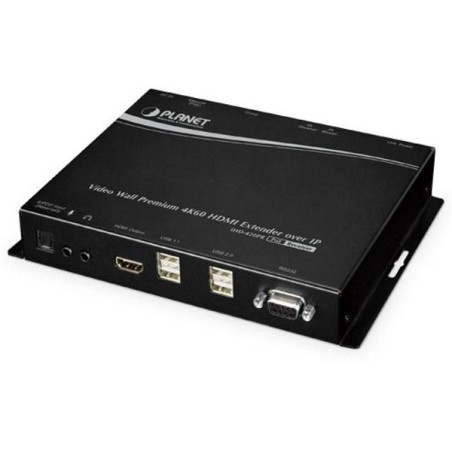

PLANET IHD-420PR
Extender (receiver) transmitting video in resolution up to 4K Ultra HD at 60 fps over LAN (ethernet) at a distance of up to 100 m . Support for EDID identification and HDCP protection. Management by utility, IR transmitter for control, USB and RS-232 transmission , VESA mounting, PoE or adapter power supply.
Solution for IP distribution of video presentations in a LAN environment for display on panels and video walls. The transmission units support several modes from transmitter-receiver connection ( 1-to-1 ) to transmitter-receiver connection ( 1-to-many ) to multicast . Control can be transmitted from IR remote controls, USB or telemetry via serial line using RS-232. Thanks to
Basic KVM applications such as touch screens, keyboards, and mice are supported via USB interfaces, allowing users to easily control PCs via KVM.
Transmission can be secured against content theft using the EDID method, transmission quality and video smoothing can be controlled for high-quality output.
BASIC SPECIFICATIONS
Features:
- 4K Ultra HD high-quality video receiver with a refresh rate of 60 frames per second
- LAN port RJ-45, 1000Base-T, standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- HDMI output, A type (female), HDMI 2.0a compatible
- video wall 8×16 segments
- 64-channel DIP switch easy to use for group alignment in multicast
- management by utility, channel switching by DIP switch
- resolution identification according to EDID (Extended display identification data)
- HDCP (High-bandwidth Digital Content Protection) transmission security
- IR sensor on the cable for remote control of the source
- RS-232 for telemetry transmission between extenders
- USB interface transmission for controlling PC using touch screen, keyboard, mouse, etc.
- clear web user interface for ease of use
Connectors: 1× RJ-45, 1× HDMI output, 1× RS-232, 2× USB 2.0, 2× USB 1.1, 1× IR output, 1× audio input, 1× audio output, 1× S/PDIF input (reserved)
Supported resolutions: 4K 2160p, 1080p, XGA, SXGA, UXGA, WSXGA
Number of units in the network: max. 64
Single channel bit rate: 500 Mbps (4K UHD @ 60 Hz)
Operating temperature: 0-55°C; humidity 5-90%
Power supply: external adapter 5 V DC/ 2 A, or PoE 802.3af/at; power consumption max. 7 W
Dimensions: 194 × 132.6 × 28.5 mm
Weight: 645g
