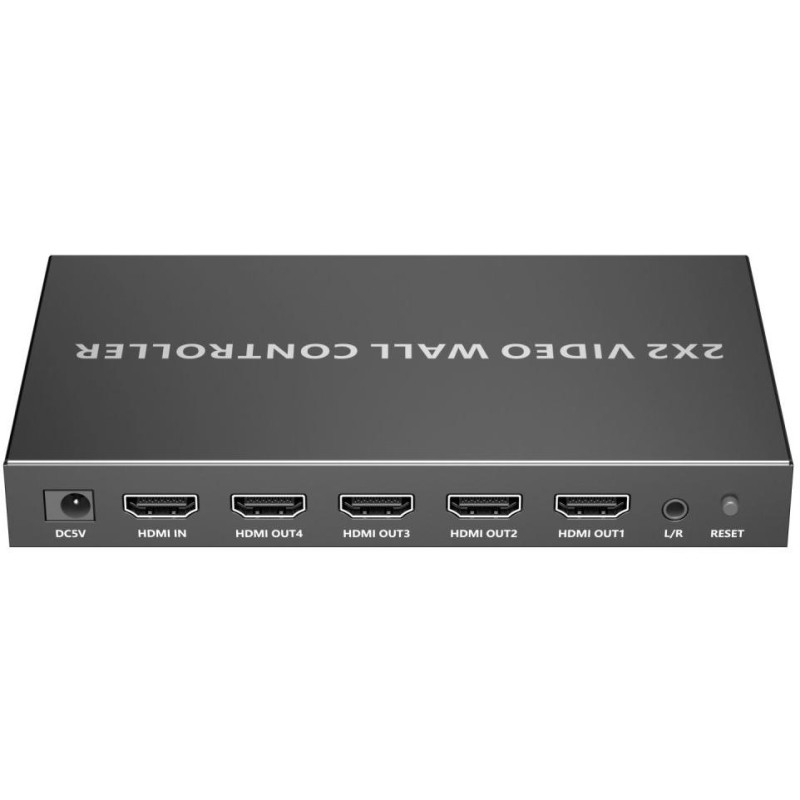

PremiumCord Video Wall Controller
This HDMI splitter allows you to display one image on four monitors . The resulting composition of four images gives one large image. Different display modes are set using DIP switches . The device can also be controlled using the RS-232 interface. The splitter is also equipped with an audio output and a micro USB port for firmware updates. The package includes a power adapter, a connector for connecting RS-232 control and side mounting plates.
For control via the RS-232 interface, the DIP switches must be set to position 1-1-1.
BASIC SPECIFICATIONS
Input: 1× HDMI 1.4
Output: 4× HDMI 1.4
Supported modes: 1×1, 2×1, 1×2, 2×2, 3×1, 1×3, 4×1, 1×4
Resolution support: 1080p (up to 60 Hz), 720p (up to 60 Hz), 576p (50 Hz), 480 (60 Hz), 1920 × 1200 (60 Hz), 1680 × 1050 (60 Hz), 1600 × 900 (60 Hz), 1600 × 1200 (60 Hz), 1440 × 900 (60 Hz), 1400 × 1050 (60 Hz), 1366 × 768 (60 Hz), 1360 × 768 (60 Hz), 1280 × 1024 (60 Hz), 1280 × 960 (60 Hz), 1280 × 800 (60 Hz), 1280 × 768 (60 Hz), 1024 × 768 (60Hz), 800 x 600 (60Hz), 640 x 480 (60Hz)
Power supply: DC 5 V/ 1 A (adapter included)
Dimensions: 160 × 90 × 20.6mm
Weight: 381g
