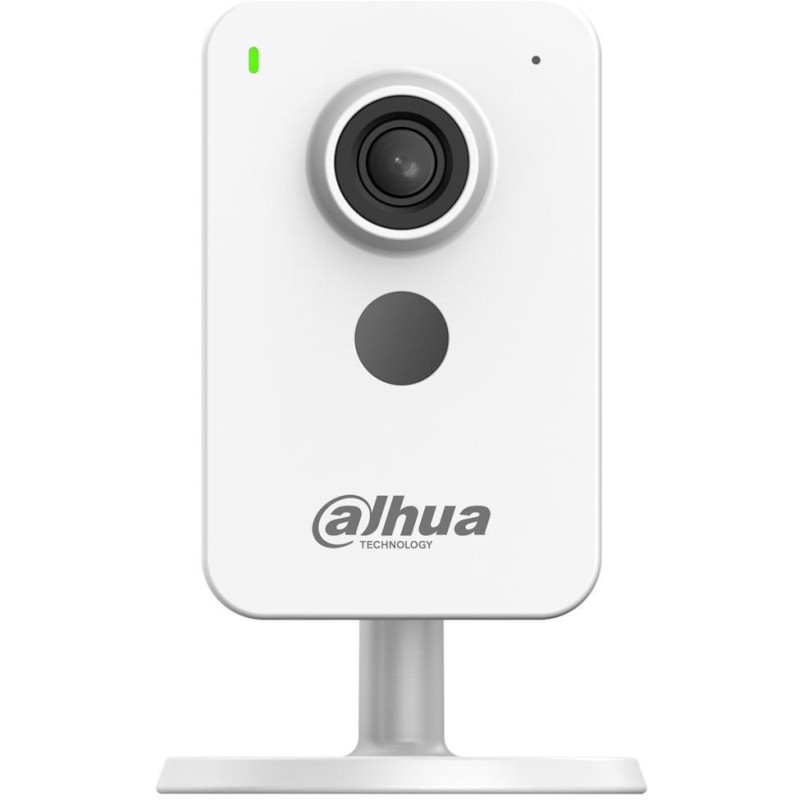

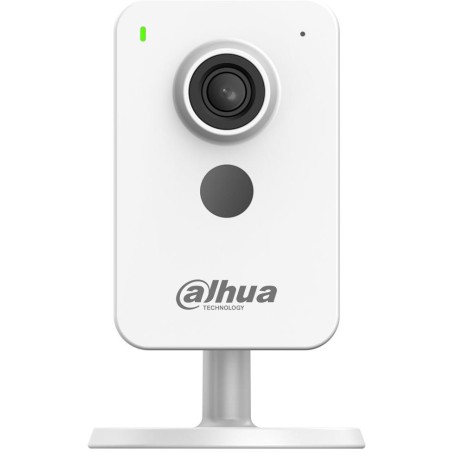

Dahua IPC-C2KP-P-0280B
Indoor 2-megapixel IP network camera Cube type with Wi-Fi , 1920 × 1080 px resolution, 1/2.7" CMOS sensor, H.265 video compression, microphone and speaker.
IR illumination up to 30 m, fixed lens, 101° horizontal viewing angle , ICR, WDR , Bluetooth pairing, microSD card slot (max. 256 GB), DC 12 V or PoE power supply.
The device comes with FREE SmartPSS Lite software. It is used for convenient management of IP (NVR/XVR/IP cameras) devices. The application allows automatic device search, live channel preview, recording of selected channels according to specified criteria and of course playback of recordings. Another application is DSS Express , which is also free. It offers more functions and client-server architecture. First, you install the server part and then the client application. The client can be installed on the same PC as the server, but also on another PC in the same network. DSS Express allows up to 10 connected clients for free. The more advanced DSS Pro is already licensed and offers many more analytical functions.
For mobile access, use the DMSS application; download and install from the application system databases (Google/Apple).
BASIC SPECIFICATIONS:
Features:
- Sensor resolution 2 Mpx
- H.265 video compression
- Mobile application in Czech
- Slot for installing a microSD card up to 256 GB capacity
- IR illumination with a range of up to 30 meters
- Two-way audio
- Privacy mode
- AI detection of human figures and vehicles
- Abnormal sound detection
- Wireless Wi-Fi connection
- Bluetooth pairing
- Image rotation 0°/180°
- PoE power support
- Manual angle adjustment: 0° to 360° horizontally, -10° to 100° vertically
Display:
Sensor resolution: 2 Mpx
Sensor chip: 1/2.7" CMOS
Maximum resolution: 1920 × 1080 px
Supported resolutions: 1920×1080, 640×360
Frame rate: 25/30 fps
IR illumination: yes, up to 30 m
Lens: fixed, angle of view 101° horizontally, 54° vertically, 119° diagonally
ICR filter: yes
Image dynamics: WDR
Interfaces and protocols:
Interface: 1× Fast Ethernet, 10/100 Base-T, RJ-45, PoE
Wi-Fi: Yes, IEEE 802.1b/g/n/ax (2.4 GHz)
Video compression: H.265, H.264, H.264H, H.264B, MJPEG
ONVIF support: no
Memory card slot: microSD (max. 256 GB)
I/O interface: 1× alarm input, 1× alarm output
Audio: yes, two-way communication (microphone + speaker)
Mechanical properties and environment:
Power supply: DC 12 V or PoE, power consumption max. 5.14 W, power adapter included
Working temperature: -10 to +45 °C, humidity up to 95%
Dimensions: 100 × 64 × 34 mm
Weight: 110g
