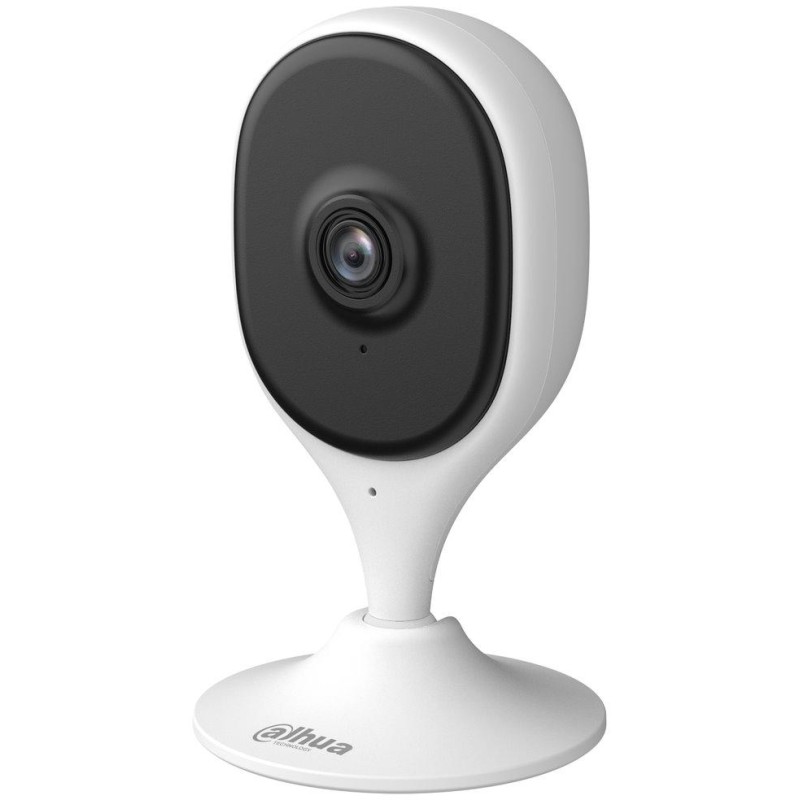

Dahua IPC-C5AP-0280B
Indoor 5-megapixel IP network camera Cube type with Wi-Fi , 2880 × 1620 px resolution, 1/2.7" CMOS sensor, H.265 video compression, microphone and speaker.
IR illumination up to 10 m, fixed lens, 90° horizontal viewing angle , ICR, DWDR , Bluetooth pairing, microSD card slot (max 256 GB), DC 5 V power supply.
The device comes with FREE SmartPSS Lite software. It is used for convenient management of IP (NVR/XVR/IP cameras) devices. The application allows automatic device search, live channel preview, recording of selected channels according to specified criteria and of course playback of recordings. Another application is DSS Express , which is also free. It offers more functions and client-server architecture. First, you install the server part and then the client application. The client can be installed on the same PC as the server, but also on another PC in the same network. DSS Express allows up to 10 connected clients for free. The more advanced DSS Pro is already licensed and offers many more analytical functions.
For mobile access, use the DMSS application; download and install from the application system databases (Google/Apple).
BASIC SPECIFICATIONS:
Features:
- Sensor resolution 5 Mpx
- H.265 video compression
- Mobile application in Czech
- Slot for installing a microSD card up to 256 GB capacity
- IR illumination with a range of up to 10 meters
- Two-way audio
- Privacy mode
- AI human figure detection, animal detection
- Abnormal sound detection
- Wireless Wi-Fi connection
- Bluetooth pairing
- Image rotation 0°/180°
- Manual angle adjustment: 0° to 360° horizontally, -10° to 70° vertically
- Magnetic base
Display:
Sensor resolution: 5 Mpx
Sensor chip: 1/2.7" CMOS
Maximum resolution: 2880 × 1620 px
Supported resolutions: 2880 × 1620, 640 × 360
Frame rate: 25/30 fps
IR illumination: yes, up to 10 m
Lens: fixed, angle of view 90° horizontally, 49° vertically, 106° diagonally
Shutter speed: 1/3–1/100,000 s
ICR filter: yes
Image dynamics: DWDR
Interfaces and protocols:
Interface: Wi-Fi, Bluetooth
Wi-Fi: Yes, IEEE 802.1b/g/n/ax (2.4 GHz)
Video compression: H.265
ONVIF support: no
Memory card slot: microSD (max. 256 GB)
I/O interface: no
Audio: yes, two-way communication (microphone + speaker)
Mechanical properties and environment:
Power supply: DC 5 V/ 1 A, power consumption max. 2.75 W, power adapter included
Working temperature: –10 to +45 °C, humidity up to 95%
Dimensions: 119.2 × 68 × 68 mm
Weight: 95g
