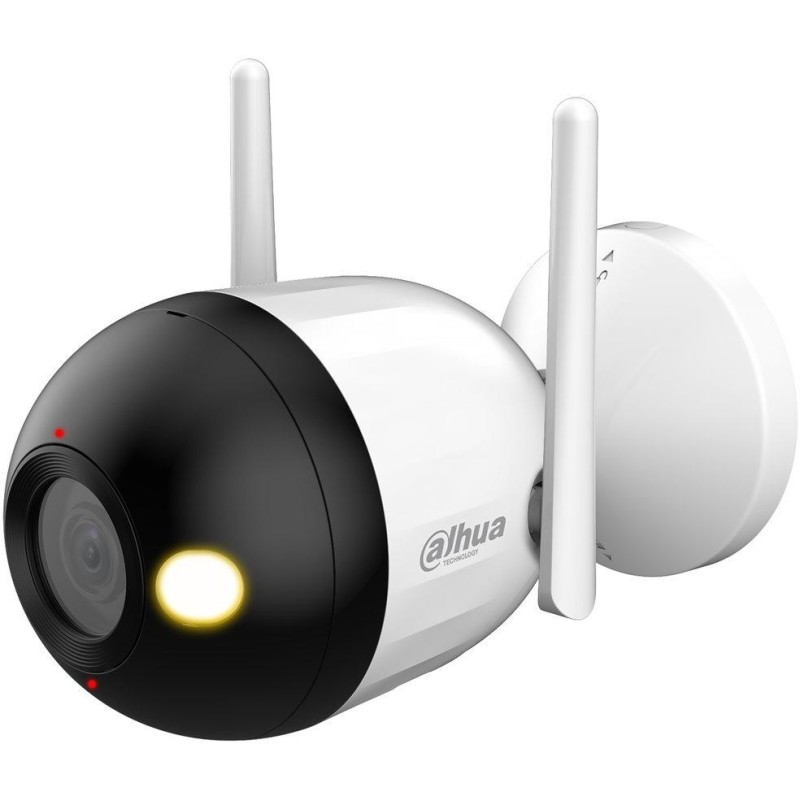

Dahua IPC-F4CP-PV-0280B
Outdoor 4-megapixel IP network camera with Wi-Fi , 2560 × 1440 resolution, 1/3" CMOS sensor, H.265+ video compression, microphone and speaker.
IR and LED illumination up to 30 m, lens f = 2.8 mm, field of view 98° horizontally , ICR, BLC, HLC, DWDR , 1× LAN 10/100 Mbps, dual streaming, RTSP, ONVIF (profile S/G), microSD card slot (max 256 GB), waterproof IP67 , DC 12 V power supply.
The device comes with FREE SmartPSS Lite software. It is used for convenient management of IP (NVR/XVR/IP cameras) devices. The application allows automatic device search, live channel preview, recording of selected channels according to specified criteria and of course playback of recordings. Another application is DSS Express , which is also free. It offers more functions and client-server architecture. First, you install the server part and then the client application. The client can be installed on the same PC as the server, but also on another PC in the same network. DSS Express allows up to 10 connected clients for free. The more advanced DSS Pro is already licensed and offers many more analytical functions.
For mobile access, use the DMSS application; download and install from the application system databases (Google/Apple).
Most Dahua IP cameras are supported in Synology ( list here ) and Qnap ( list here ) NAS devices.
BASIC SPECIFICATIONS:
Features:
- H.265+ and H.264+ compression
- SMD (human detection) support
- Multiple access from a remote computer on a LAN or the Internet
- Motion detection can automatically send alert emails with captured images
- Hardware monitoring and video recording
- Dual stream – two data streams with different bandwidth sizes
- Slot for installing a microSD card up to 256 GB capacity
- Active deterrence
Display:
Sensor resolution: 4 Mpx
Sensor chip: 1/3" CMOS
Maximum resolution: 2560 × 1440 px
Supported resolutions: 4 Mpx (2560 × 1440), 3 Mpx (2304 × 1296), 1080p (1920 × 1080), 1.3 Mpx (1280 × 960), 720p (1280 × 720)
Frame rate: 25/30 fps
Minimum illumination: 0.005 lux (F1.6, color, 30 IRE), 0.0005 lux (F1.6, monochrome 30 IRE), 0 lux with IR illumination
IR illumination: yes, up to 30 m
Lens: f = 2.8 mm, fixed, angle of view 98° horizontally, 55° vertically, 115° diagonally
Shutter speed: 1/3 – 1/100,000 s
ICR filter: yes
Light Compensation: BLC, HLC
Image dynamics: DWDR
Noise reduction: 3D NR
Automatic gain and brightness control: yes
Automatic white balance: yes
Flicker reduction: yes
Interfaces and protocols:
Interface: 1× Fast Ethernet, 10/100 Base-T, RJ-45
Wi-Fi: Yes, IEEE 802.1b/g/n (2.4 GHz)
Number of users: up to 20 simultaneously connected clients
Video compression: Smart H.265+, Smart H.264+, H.265, H.264, H.264H, H.264B
ONVIF support: yes, S/G profile + CGI support
Protocols: IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP, P2P
Streaming: Dual stream
Memory card slot: microSD (max. 256 GB)
I/O interface: no
Audio: yes, two-way communication (microphone + speaker)
Mechanical properties and environment:
Power supply: DC 12 V, power consumption up to 6.6 W (illumination + H.265), power adapter included
Protection: waterproof, protection level IP67
Working temperature: –40 to +60 °C, humidity up to 95%
Dimensions: 131 × 97.2 × 78.4 mm
Weight: 254.5g
