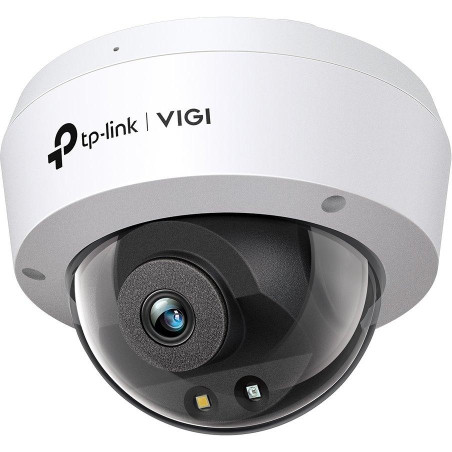

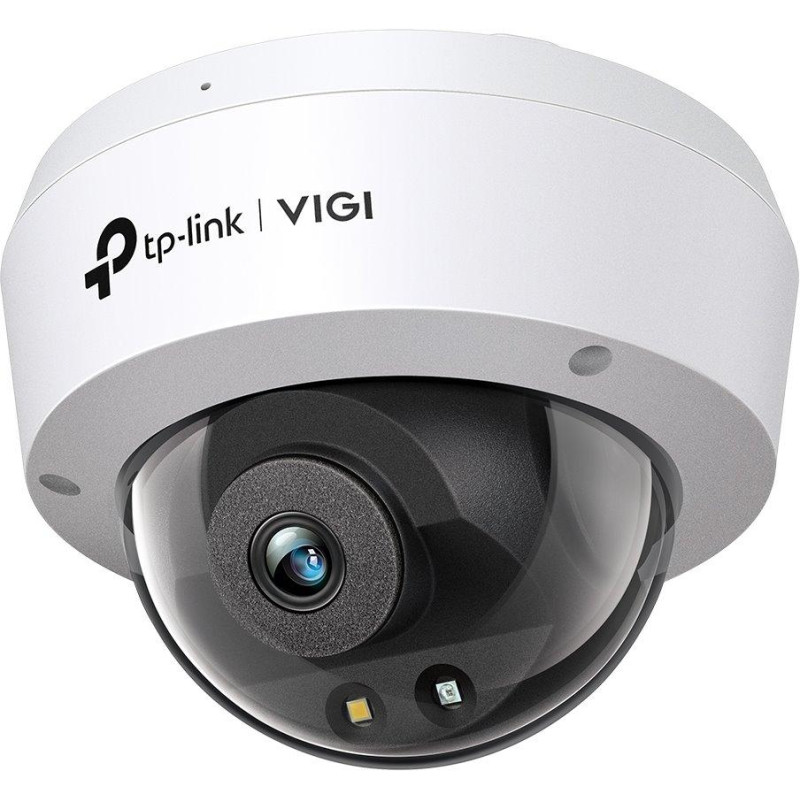

TP-Link VIGI C230
The 3-megapixel dome IP camera features a 1/2.8" CMOS sensor with a resolution of 2304 × 1296 pixels, a sensitivity of 0.005 lux (color) and DWDR support. Connection can be easily made via the RJ-45 port . Thanks to the TP-Link VIGI application, you can monitor events 24 hours a day, 7 days a week from anywhere via your smartphone. A reliable night vision system ensures that the camera works well even in poor lighting conditions and records events for future inspection. Two power supply methods not only provide you with greater convenience, but also make connection extremely easy.
- High resolution 3 Mpx: More than enough pixels to capture even the finest details.
- Smart Detection: Receive notifications and monitor channels when someone crosses the boundary, enters the set area, obstructs the camera, or removes/leaves objects.
- Continuous color imaging: 24-hour color imaging even in the darkest of conditions thanks to LED illumination.
- Durability: With a rugged housing and waterproof design, this camera is built to withstand vandalism and harsh environments with rain and dust for constant security anywhere, anytime.
- H.265+: Cameras transmit compressed, crystal-clear images without using additional bandwidth, saving disk space, reducing network load, and monitoring costs—all without compromising image quality.
- PoE/12V DC: Two power supply methods not only provide you with greater convenience, but also make wiring extremely easy.
- Flexible Management: Take full control of your security through four management methods: Web UI, NVR UI, VIGI App, and VIGI Security Manager.
BASIC SPECIFICATIONS
Display :
Sensor resolution: 3.0 Mpx
Sensor chip: 1/2.8" CMOS
Maximum resolution: 2304 × 1296 px
Frame rate: 25 fps
IR illumination: yes, up to 30 m
LED light: yes, up to 30 m
Angle of view: 2.8 mm: horizontal 107.5°, vertical 57.2°, diagonal 128.7°
Interfaces and protocols:
Interface: 1× RJ-45
Video compression: H.264+, H.265+, H.264, H.265
Memory card slot: no
Audio: built-in microphone
Mechanical properties and environment:
Power supply: DC 12 V (power supply not included), PoE (802.3af/at), consumption max. 4.7 W
Working temperature: -30 to +60 °C
Protection level: IP67, IK10
Dimensions: 115 × 115 × 86 mm
